Innolux 21.3 Inch Medical TFT Display LCD Screen Module 1000cd/M2 Brightness

Name: Innolux 21.3 Inch Medical TFT Display LCD Screen Module 1000cd/M2 Brightness
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: R213UCE-L02
Price: 50.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	R213UCE-L02
MOQ:	1
Price:	$575/pieces 1-99 pieces
Payment Terms:	,L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

TFT-LCD Approval Specif...09.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

21.3inch

Brand:

Innolux

Resolution:

1600(RGB)x1200, UXGA 94PPI

Module Outsize(mm):

457(H)×350(V) ×19.79(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

1000cd/m2

Contrast Ratio:

1800:1 (Typ.) (TM)

Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Light Source:

WLED , 50K Hours , With LED Driver

Touch Panel:

Without

Application:

Industrial Equipment & Medical Imaging

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MPQ:

5pcs

Warranty:

12 Months

Packaging Details:

5pcs/Box

Highlight:

Innolux Medical TFT Display

21.3 Inch Medical TFT Display

1000cd/M2 tft display screen

Product Description

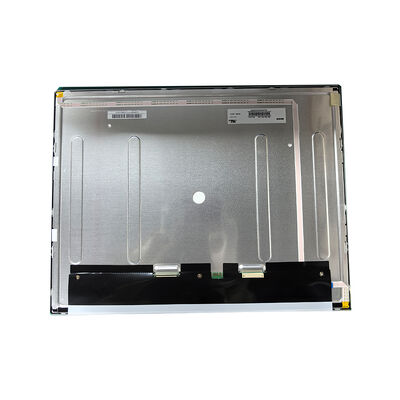

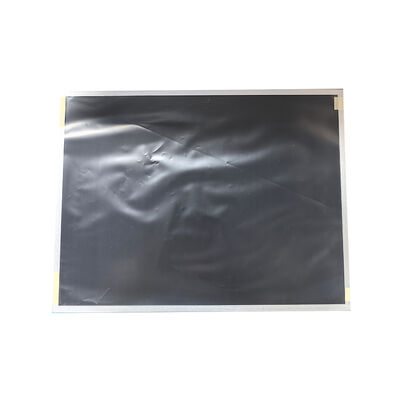

R213UCE-L02 Innolux 21.3 Inch TFT LCD Screen Module

High-performance 21.3-inch TFT-LCD display module with 1600x1200 resolution, designed for Industrial and medical imaging applications.

Optional touch screen available.

This model is in mass production. We can supply large quantities with competitive pricing, and orders are warmly welcome!

Key Features

1600*1200 UXGA resolution with 94 PPI for clear, detailed imagery
1000 cd/m² brightness for excellent visibility
AAS technology with 89/89/89/89 viewing angles
LVDS interface with 30-pin connector for reliable data transmission
1800:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 74% NTSC color gamut
Wide operating temperature range: -0°C to 50°C

Technical Specifications

Innolux R213UCE-L02 Display Panel

Panel Model	R213UCE-L02
Panel Brand	Innolux
Size	21.3 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 94PPI
Pixel Format	RGB Vertical Stripe
Module Dimensions	457(H)×350(V)×19.79(D) mm
Display Mode	AAS, Normally Black, Transmissive
Active Area	432(W)×324(H) mm
Response Time	8/8 (Typ.)(Tr/Td)
Display Colors	16.7M, 74% NTSC
Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Touch Screen	Without
Brightness	1000 cd/m² (Typ.)
Power Supply	12V (Typ.)
Contrast Ratio	1800:1 (Typ.) (TM)
Application	Industrial, Medical Imaging
Frame Ratio	60Hz
Storage Temperature	-20°C to 60°C
Operating Temperature	-0°C to 50°C
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
FPC Connector	P-two,187114-30091, Pitch 1.0mm

Applications

• Industrial Control Display
• Medical Equipment Display

• Outdoor High Brightness Device
• CNC Machine Display
• Security Monitor Display
• Instrument Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

It can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
