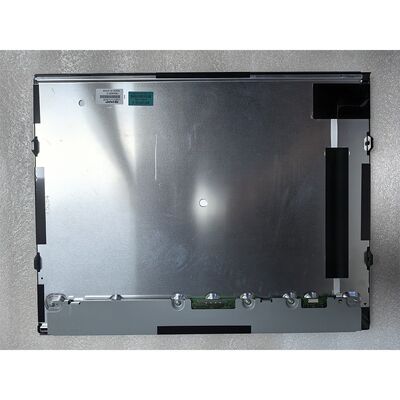

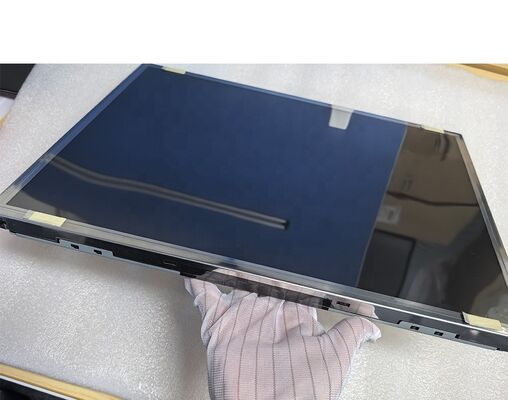

Sharp 20.1inch 1600x1200 UXGA IPS TFT LCD Display Monitor For Medical Imaging

Sharp 20.1inch 1600x1200 UXGA IPS TFT LCD Display Monitor For Medical Imaging

Brand Name:	Sharp
Model Number:	LQ201U1LW32
MOQ:	1
Price:	$1,280/pieces 1-99 pieces
Payment Terms:	,L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

20.1inch

Brand:

Sharp

Resolution:

1600(RGB)x1200, UXGA 99PPI

Module Outsize(mm):

436 X335 X21.4

Viewing Angle:

85/85/85/85 (Typ.)(CR 10)

Brightness:

260cd/m2

Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Touch Panel:

Without

Application:

Industrial Equipment & Medical Imaging

Environment:

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C

MPQ:

4pcs

Warranty:

12 Months

Packaging Details:

4pcs/Box

Highlight:

1600x1200 tft display monitor

UXGA tft display monitor

UXGA 10 inch tft monitor

Product Description

Sharp 20.1 inch 1600x1200 UXGA IPS LCD Display Module

High-performance 20.1-inch TFT-LCD display module with 1600×1200 UXGA resolution, specifically designed for industrial and medical imaging applications requiring exceptional clarity and reliability.

Key Features

1600×1200 UXGA resolution with 99 PPI for detailed imagery
260 cd/m² brightness for clear visibility
IPS technology with 85/85/85/85 viewing angles
LVDS interface with 30-pin connector for reliable data transmission
1400:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 71% NTSC color gamut
Wide operating temperature range: -0°C to 50°C

Technical Specifications

Panel Model	LQ201U1LW32	Panel Brand	Sharp
Size	20.1 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 99PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	436 × 335 × 21.4 mm (H×V×D)	Display Mode	VA, Normally Black, Transmissive
Active Area	408 × 306 mm	Response Time	30 ms (Typ.)
Display Colors	16.7M 71% NTSC	Light Source	WLED, 50K hours
Viewing Angle	85/85/85/85 (Typ.)	Touch Screen	Without
Brightness	260 cd/m² (Typ.)	Power Supply	12V (Typ.)
Contrast Ratio	1400:1 (Typ.)	Application	Industrial, Medical Imaging
Frame Rate	60Hz	Storage Temperature	-25°C to 60°C
Interface Type	LVDS (2 ch, 8-bit)	Operating Temperature	-0°C to 50°C
Connector	30 pins, HRS MDF76GW-30S-1H, Pitch 1.0mm

Applications

Industrial Control Display
Medical Equipment Display
CNC Machine Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

Can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.
