| Brand Name: | Tianma |
| Model Number: | TM070JDHG34 |
| MOQ: | 1 |
| Price: | $66/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 3Kpcs/Month |

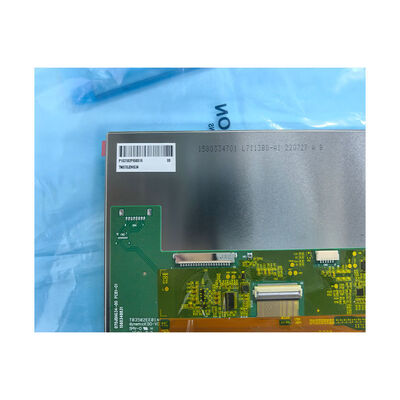

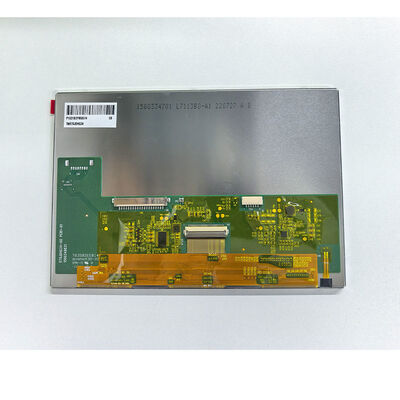

This is a 7-inch WXGA 1280*800 a-Si TFT-LCM from Tianma with 600cd/㎡ high brightness, wide viewing angle, LVDS 20pin interface, customized for medical devices without touch panel.
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Model Information | Brand | TIANMA |
| Model | TM070JDHG34-00 | |
| Basic Information | Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Pixel Number | 1280(RGB)*800, WXGA, 16:10 |
| Dot Layout | RGB Vertical Stripe | |
| Active Area | 149.76(H)*93.6(V) mm | |
| Physical Size | 161(H)*107(V) mm | |
| Luminance | 600 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Response Time | 35 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Operating Mode | SFT, Normally Black, Transmissive | |
| Support Color | 262K/16.7M, 50% NTSC | |
| Frame Rate | 60Hz | |
| Structure & Appearance | Mass | 140g (Typ.) |
| Surface Coating | Hard coating (3H) | |
| Touch Function | Touch Panel | Without |
| Backlight & Power | Power Usage | - |
| Light Source | 6S5P WLED, 50K hrs, With LED Driver | |
| Power Supply | 3.3V (Typ.) | |
| Interface | Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Connector | JAE,FI-SE20P-HFE,Pitch 1.25mm | |
| Application & Environment | Designed For | Medical equipment,Industrial device,Industial Tablet PC |
| Environment | Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
The Touch version Model is TM070JVHG33-01.
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
