Original Sharp LQ050T1SX05 5.0-Inch FHD 1080x1920 Mobile Phone Display Panel Handheld Terminal LED MIPI Interface sRGB TFT LCD Module IPS

Brand Name

Sharp

Country Of Origin

China

Unit Price

$20/pieces 1-99 pieces

Product Details

Highlight:

tft lcd module ips

sharp lcd tft module

sharp tft lcd module

Type: TFT

Display Size: 7inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1080(RGB)x1920, FHD 445PPI

Module Outsize(Mm): 64.041x116.224x1.16 (HxVxD)

Viewing Angle: 85/85/85/85 (Typ.)(CR 10)

Brightness: 450cd/m2

Interface: MIPI (4 Data Lanes) , Connector 34 Pins

Touch Screen: Without

Application: Mobile Phone Handheld Terminal

MPQ: 240pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	LQ050T1SX05	Panel Brand	Sharp
Size (inch )	5inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1080(RGB)×1920, FHD 445PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	64.041(W)×116.224(H) ×1.16(D) mm	Display Mode	New Mode2, Normally Black, Transmissive
LCD Active area(mm)	61.641(W)×109.584(H) mm	Response Time	45 (Max.)(Tr+Td)
Display Colors	16.7M 95% NTSC	Light Source	7S2P WLED , Without Driver
Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)
Contrast Ratio	1000:1 (Typ.) (TM)	Used for	Mobile Phone, Handheld Terminal
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 70 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 60 °C
LCM Interface Type	MIPI (4 data lanes) , 34 pins Connector	FPC connector	HRS, BM20B(0.8)-34DP-0.4V(51),Pitch 0.4mm

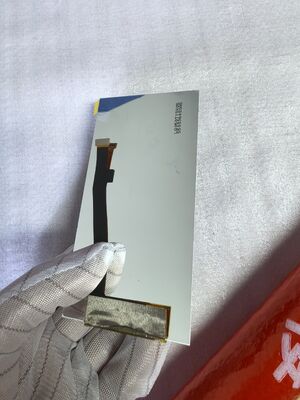

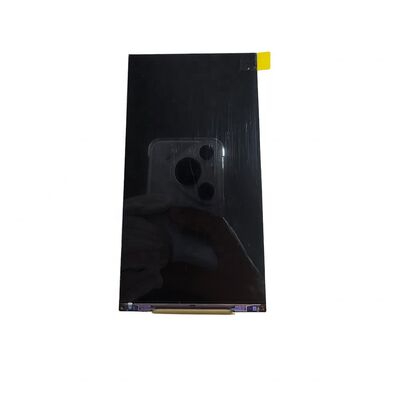

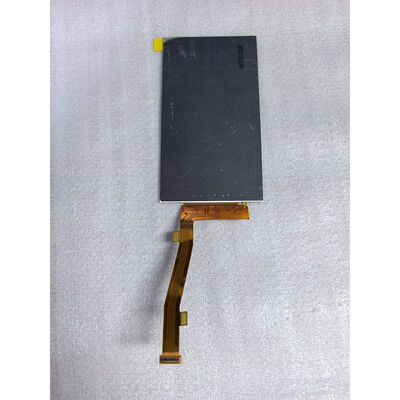

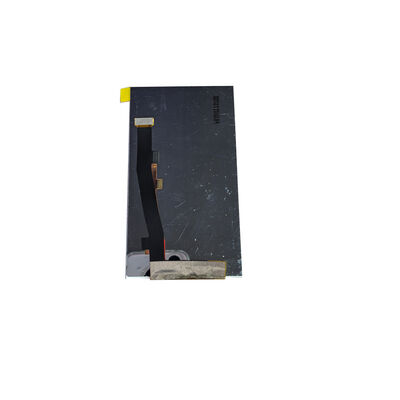

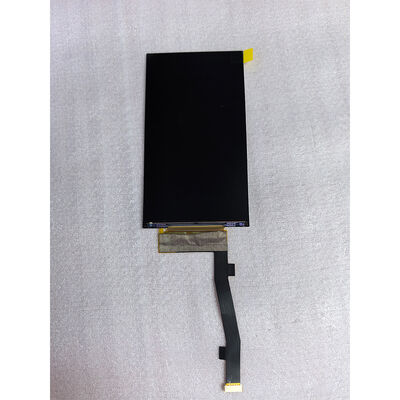

Details Images

Original Sharp LQ050T1SX05 5.0-Inch FHD 1080x1920 Mobile Phone Display Panel Handheld Terminal LED MIPI Interface sRGB TFT LCD Module IPS
