High Brightness 555cd/M2 Industrial TFT Display LCD Screen Monitor Tianma TM070RDHG71
High Brightness 555cd/M2 Industrial TFT Display LCD Screen Monitor Tianma TM070RDHG71
Brand Name
Tianma
Product Model
TM070RDHG71
Country Of Origin
China
MOQ
1
Unit Price
$35/pieces 1-499 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
High Brightness Industrial TFT Display
,555cd/M2 Industrial TFT Display
,555cd/M2 tft screen monitor
Type:
TFT
Display Size:
7inch
Supplier Type:
Original Brand
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
800(RGB)x480, WVGA 134PPI
Module Outsize(Mm):
164.9 X100x 6
Viewing Angle:
88/88/88/88 (Typ.)(CR 10)
Brightness:
555cd/m2
Interface:
Parallel RGB (1 Ch, 6/8-bit) 50 Pins FPC
Touch Panel:
Without
Application:
Industrial, Automotive
MPQ:
40pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features

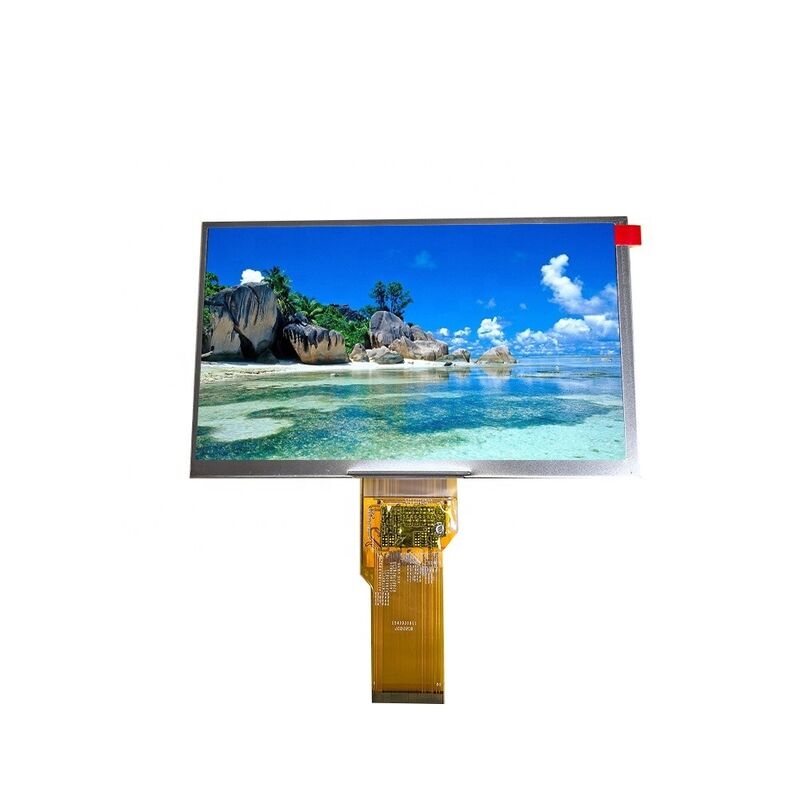

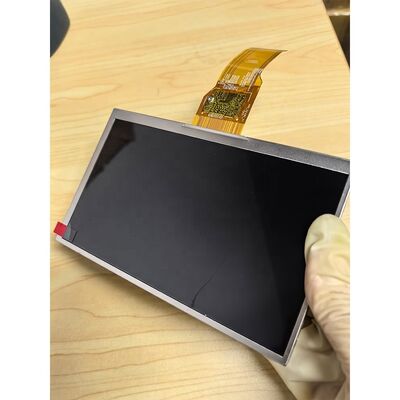

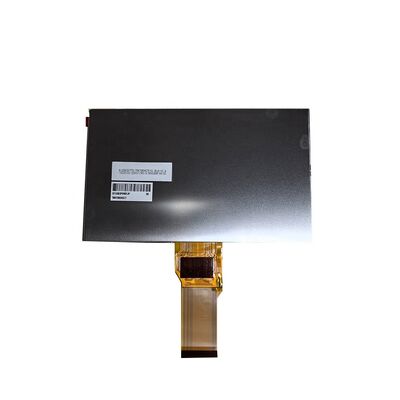

Tianma TM070RDHG71 7-Inch High Brightness LCD Display
This 7-inch high-brightness TFT LCD screen features an 800×480 WVGA resolution with IPS technology, designed for industrial and automotive applications requiring reliable performance in demanding environments.
Key Specifications
| Panel Model | TM070RDHG71 |
| Panel Brand | Tianma |
| Screen Size | 7-inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA (134 PPI) |
| Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 164.9mm (W) × 100mm (H) × 6mm (D) |
| Active Display Area | 154.08mm (W) × 85.92mm (H) |
| Display Mode | SFT, Normally Black, Transmissive |
| Response Time | 30ms (Typical, Tr+Td) |
| Display Colors | 16.7M (70% NTSC) |
| Backlight | WLED [3S9P], 20,000 hours (without driver) |
| Viewing Angle | 88/88/88/88 (Typical, CR≥10) |
| Touch Screen | Without |
| Brightness | 555 cd/m² (Typical) |
| Contrast Ratio | 900:1 (Typical) |
| Frame Rate | 60Hz |
| Power Supply | 3.3V/11.9V/20V/-7V (VDD/AVDD/VGH/VGL) |
| Interface Type | Parallel RGB (1 channel, 6/8-bit) 50-pin FPC |
| FPC Connector | Pitch 0.5mm |
Environmental Specifications
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -20°C to 70°C |
Application Areas
- Industrial equipment and machinery
- Automotive display systems
- Medical imaging devices
Industrial-Grade Reliability
Designed for demanding environments with wide operating temperature range and high brightness for excellent visibility in various lighting conditions.
