| Brand Name: | BOE |
| Model Number: | EV101WXM-N10 |
| MOQ: | 1 |
| Price: | $35/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

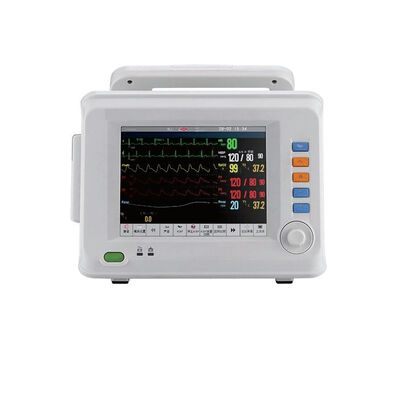

The BOE EV101WXM-N10 is a 10.1-inch WXGA ADS LCD panel with 400cd/㎡ high brightness,LVDS interface, specially optimized for medical equipment and industrial embedded display devices.
| Parameter Category | Parameter Details | Parameter Value |
|---|---|---|
| Model Information | Manufacturer | BOE |
| Model Name | EV101WXM-N10 | |
| Basic Information | Display Size | 10.1 inch |
| Panel Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Resolution | 1280(RGB)*800, 16:10, WXGA |
| Pixel Structure | RGB Vertical Stripe | |
| Display Area | 216.96(W)*135.6(H) mm | |
| Outline Size | 228.6(W)*149.2(H)*6(D) mm | |
| Brightness | 400 cd/m² (Typ.) | |
| Contrast Ratio | 900:1 (Typ.) (TM) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | |
| View Direction | Symmetry | |
| Display Mode | ADS, Normally Black, Transmissive | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Display Colors | 16.7M, 50% NTSC | |
| Frequency | 60Hz | |
| Structure & Appearance | Panel Weight | 175±20g |
| Surface | No special coating | |
| Backlight & Power | Light Source | WLED, 30K hrs, With LED Driver |
| Power Consumption | 4.2W (Max.) | |
| Input Voltage | 3.3V (Typ.) | |
| Interface & Function | Interface | LVDS (1 ch, 8-bit), 40 pins Connector |
| Connector | STM,MSAK24025P40G,Pitch 0.5mm | |
| Touch Screen | Without | |
| Application & Environment | Application | Medical & Industrial Equipment |
| Environment | Operating Temp. -20 ~ 70 °C, Storage Temp. -30 ~ 70 °C |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation. Optional industrial-grade capacitive touch available.
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
