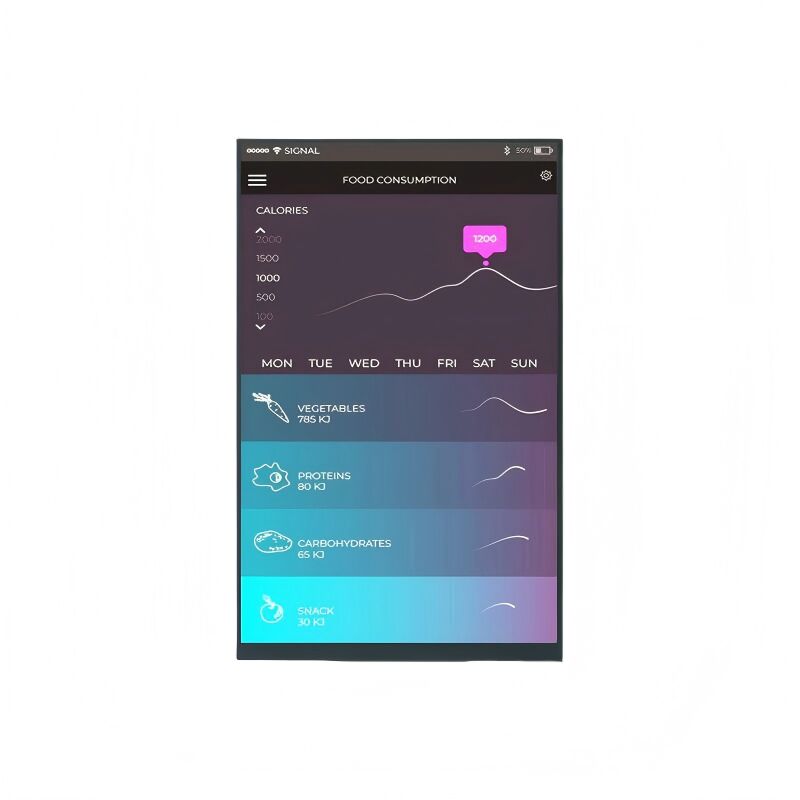

8.0 inch 800x1280 MIPI interface JD9365DA IPS TFT LCD module

1. Product name: 8.0 inch 800x1280 MIPI interface JD9365DA IPS TFT LCD module

2. Part No.: SJ080LQRWXFID003

3. Size.: 8.0 inch

4. Compatible part No.: --

5. With touch panel or not: No

6. Touch type: No

7. Display type: IPS

8. Display colors: 16.7M

9. Resolution (pixels): 800x1280

10. Pixel pitch: 0.1506(H)*0.1432(V)

11. Viewing direction: Free V.A

12. Driver IC: JD9365DA-H3

13. Display mode: Transmissive / Normally black

14. Overall size: 114.60*184.10*2.60mm

15. Viewing area: --

16. Active area: 107.64*172.22mm

17. Luminance: 250cd/m²

18. Contrast: 1000∶1

19. Interface type: MIPI

20. Pin NO.: 31

21. Pin pitch: 0.3mm

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 21 LEDs, 3 Series & 7 Parallel

V_F=9.0~10.5V, I_F=140mA

26. LED life time: 20000h

27. Operating temperature range: -10℃～+50℃

28. Storage temperature range: -20℃～+60℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF1694
