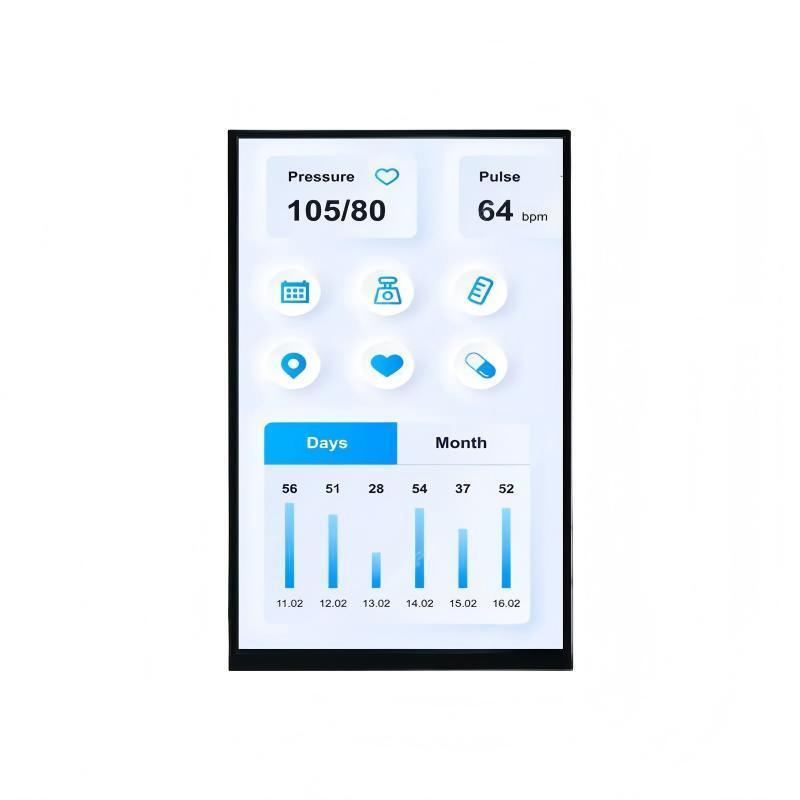

10.1 inch 1200x1920 IPS TFT LCD Module with MIPI interface

1. Product name: 10.1 inch 1200x1920 IPS TFT LCD Module with MIPI interface

2. Part No.: SJ101LQRFHFID007

3. Size.: 10.1 inch

4. Compatible part No.: --

5. With touch panel or not: No

6. Touch type: No

7. Display type: TFT

8. Display colors: 16.7M

9. Resolution (pixels): 1200x1920

10. Pixel pitch: 0.1128(H)*0.1128(V)

11. Viewing direction: Free V.A

12. Driver IC: TBD

13. Display mode: Transmissive / Normally black

14. Overall size: 143.00*228.60*2.60mm

15. Viewing area: --

16. Active area: 135.36*216.58mm

17. Luminance: 250cd/m²

18. Contrast: 1000∶1

19. Interface type: 4-lane MIPI

20. Pin NO.: 40

21. Pin pitch: --

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 32 LEDs 8 Series & 4 Parallel

V_F =23.2~26.4V, I_F=90mA

26. LED life time: 20000h

27. Operating temperature range: -10℃～+50℃

28. Storage temperature range: -20℃～+60℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
