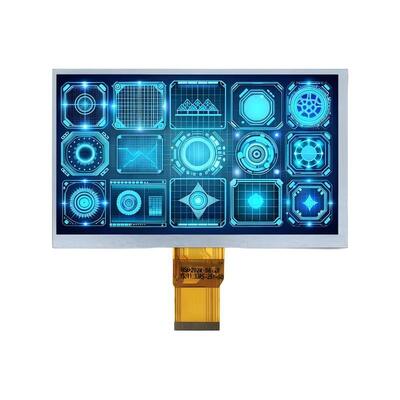

7.0 inch 1024x600 24 BIT RGB interface JD9165BA industrial IPS TFT LCD module

1. Product name: 7.0 inch 1024x600 24 BIT RGB interface JD9165BA industrial IPS TFT LCD module

2. Part No.: SJ070LQRHDFPA005

3. Size.: 7.0 inch

4. Compatible part No.: --

5. With touch panel or not: No

6. Touch type: No

7. Display type: IPS

8. Display colors: 16.7M

9. Resolution (pixels): 1024x600

10. Pixel pitch: 0.0502(H)*0.1432(V)

11. Viewing direction: Free V.A

12. Driver IC: JD9165BA

13. Display mode: Transmissive / Normally black

14. Overall size: 164.86*99.96*3.50mm

15. Viewing area: --

16. Active area: 153.84*85.63mm

17. Luminance: 200cd/m²

18. Contrast: 800∶1

19. Interface type: 24 BIT RGB

20. Pin NO.: 50

21. Pin pitch: 0.5mm

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 21 LEDs, 3 Series & 7 Parallel

V_F=9.0V, I_F=140mA

26. LED life time: 20000h

27. Operating temperature range: -10℃～+60℃

28. Storage temperature range: -20℃～+70℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
