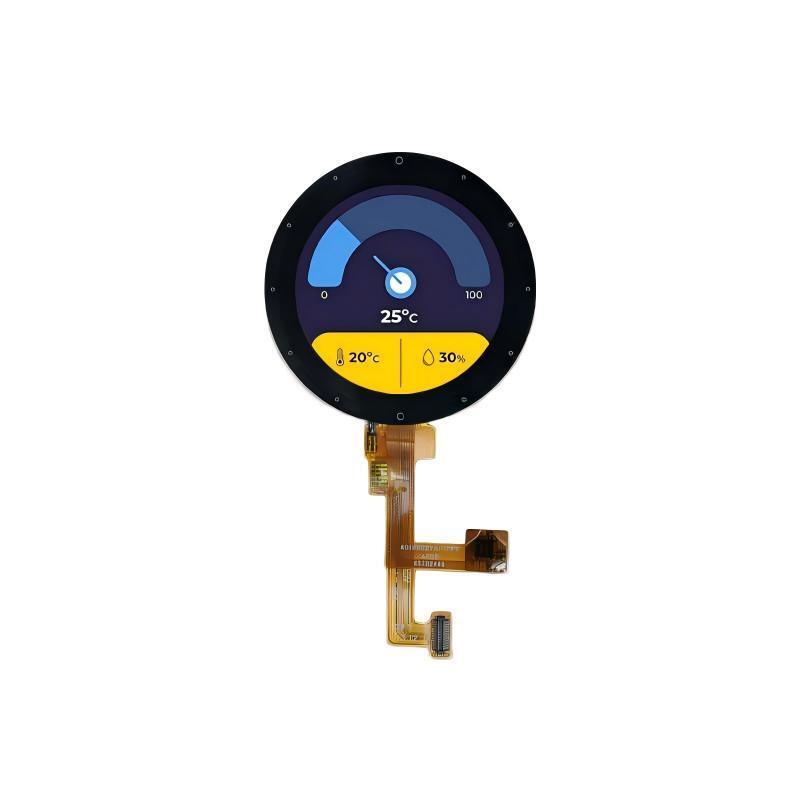

1.28 inch full viewing angle with CTP Industrial Round display module

1. Product name: 1.28 inch full viewing angle with CTP Industrial Round display module

2. Part No.: SJ013LQRQVFSD002-C001A

3. Size.: 1.28 inch

4. Compatible part No.: --

5. With touch panel or not: Yes

6. Touch type: Capacitive Touch

7. Display type: TFT

8. Display colors: 262K

9. Resolution (pixels): 240x240

10. Pixel pitch: 0.000315(H)*0.000315(V)

11. Viewing direction: Free V.A

12. Driver IC: ST77912

13. Display mode: Transmissive / Normally black

14. Overall size: 44.10*44.10*2.91mm

15. Viewing area: --

16. Active area: 32.40*32.40mm

17. Luminance: 550cd/m²

18. Contrast: 800∶1

19. Interface type: 4SPI

20. Pin NO.: 24

21. Pin pitch: --

22. Connecting type: plugging type

23. Input voltage: 2.8V

24. Backlight type and color: LED backlight / white

25. Backlight: 2 LEDs Parallel

V_F=3.0V, I_F=40mA

26. LED life time: --

27. Operating temperature range: -20℃～+70℃

28. Storage temperature range: -30℃～+80℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949

CTP Feature:

1. Principle: Projective

2. Transparency: ≥85%

3. Haze: ≤3%

4. Hardness: ≥6H

5. Touch point: -- points

6. Structure: --

7. Outline size: --

8. VA size: --

9. Driver IC: CST816D

10. Interface: IIC

11. Connecting type: plugging type

12. Pin NO.: 6

13. Pin pitch: --

14. Operating system support: Linux, Android

15. Compliant: RoHS

16. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
