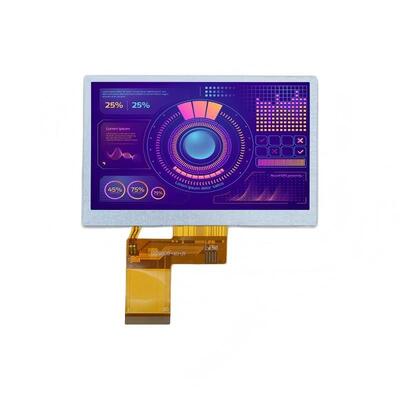

4.3 inch 480x272 TN 12H Viewing Angle RGB Interface ST7282 Industrial TFT LCD Display

1. Product name: 4.3 inch 480x272 TN 12H viewing angle RGB interface ST7282 Industrial TFT LCD Display

2. Part No.: SJ043LQRWQTPA007

3. Size.: 4.3 inch

4. Compatible part No.: --

5. With touch panel or not: No

6. Touch type: No

7. Display type: TN

8. Display colors: 262K

9. Resolution (pixels): 480x272

10. Pixel pitch: 0.198(H)*0.198(V)

11. Viewing direction: V.A 12H

12. Driver IC: ST7282

13. Display mode: Transmissive / Normally white

14. Overall size: 105.50*67.20*2.92mm

15. Viewing area: --

16. Active area: 95.04*53.86mm

17. Luminance: 200cd/m²

18. Contrast: 700∶1

19. Interface type: 24BIT RGB

20. Pin NO.: 40

21. Pin pitch: 0.5mm

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 7 LEDs Series

V_F=21V, I_F=20mA

26. LED life time: 30000h

27. Operating temperature range: -20℃～+70℃

28. Storage temperature range: -30℃～+80℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
