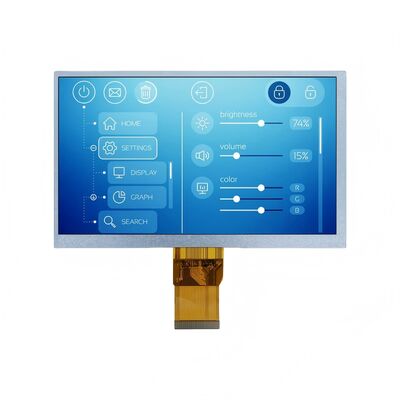

7.0 inch 800x480 resolution 24 Bit RGB interface Industrial TFT LCD module with TN 12H viewing angle

1. Product name: 7.0 inch 800x480 24 Bit RGB interface TN 12H viewing angle Industrial TFT LCD module

2. Part No.: SJ070LQRWVTPA004

3. Size.: 7.0 inch

4. Compatible part No.: --

5. With touch panel or not: No

6. Touch type: No

7. Display type: TN

8. Display colors: 16.7M

9. Resolution (pixels): 800x480

10. Pixel pitch: --

11. Viewing direction: V.A 12H

12. Driver IC: EK79716B+EK3202AB2

13. Display mode: Transmissive / Normally black

14. Overall size: 164.90*99.96*3.50mm

15. Viewing area: --

16. Active area: 153.84*85.63mm

17. Luminance: 200cd/m²

18. Contrast: 500∶1

19. Interface type: 24 Bit RGB

20. Pin NO.: 50

21. Pin pitch: 0.5mm

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 18 LEDs, 3 Series & 6 Parallel

V_F=9.6V, I_F=120mA

26. LED life time: TBD

27. Operating temperature range: -10℃～+60℃

28. Storage temperature range: -20℃～+70℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
