| Brand Name: | Sharp |
| Model Number: | LQ190E1LX65 |
| MOQ: | 1 |
| Price: | $150/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

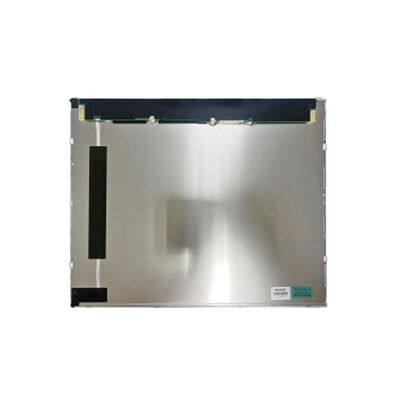

The Sharp LQ190E1LX65 is a 19.0-inch SXGA TFT-LCD panel featuring 100% sRGB color accuracy, 1500:1 contrast ratio, -20~70°C wide operating range, and a durable antiglare/3H surface, designed for industrial, medical, and gaming applications.
| Category | Item | Specification |
|---|---|---|
| Basic Information | Brand | Sharp |
| Model | LQ190E1LX65 | |
| Diagonal Size | 19.0 inch | |
| Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Resolution | 1280(RGB)*1024, 5:4, SXGA |
| Pixel Structure | RGB Vertical Stripe | |
| Active Area | 376.32(H)*301.056(V) mm | |
| Physical Size | 396(H)*323.5(V)*12(D) mm | |
| Mass | 1.30Kgs (Typ.) | |
| Surface Coating | Antiglare (Haze 3%), Hard coating (3H) | |
| Luminance | 330 cd/m² (Typ.) | |
| Contrast Ratio | 1500:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Response Time | 35 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Operating Mode | ASV, Normally Black, Transmissive | |
| Support Color | 16.7M, 100% sRGB | |
| Frame Rate | 60Hz | |
| Backlight & Touch | Light Source | WLED, 70K hrs, With LED Driver |
| Touch Panel | Without | |
| Power Usage | 19.6W (Typ.) | |
| Electrical Interface | Interface Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Power Supply | 5.0V (Typ.) | |
| Connector | JAE,FI-XB30SSRLA-HF16,Pitch 1.0mm | |
| Environment | Operating Temperature | -20 ~ 70 ℃ |
| Storage Temperature | -25 ~ 70 ℃ |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
