BOE DV215FHM-R01 21.5-Inch FHD 1920*1080 Resolution Industrial Digital Signage TFT Display with LVDS Interface and WLED Backlight 30,000 Hours

Name: BOE DV215FHM-R01 21.5-Inch FHD 1920*1080 Resolution Industrial Digital Signage TFT Display with LVDS Interface and WLED Backlight 30,000 Hours
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: DV215FHM-R01
Price: 42.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV215FHM-R01
MOQ:	1
Price:	$84/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Document:

DV215FHM-R01.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

21.5 Inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)×1080, 16:9, FHD

Module Outsize(mm):

495.6(H)×292.2(V)×11.2(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

350cd/m2

Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Color Depth:

16.7M, 72% NTSC

Enviroment:

Operating Temperature -20 ~ 85 °C, Storage Temperature -30 ~ 85 °C

Application:

Industrial Equipment, Instrument,Kiosks & POS Systems,Medical Equipment

Warranty:

12 Months

Packaging Details:

12pcs/Box

Product Description

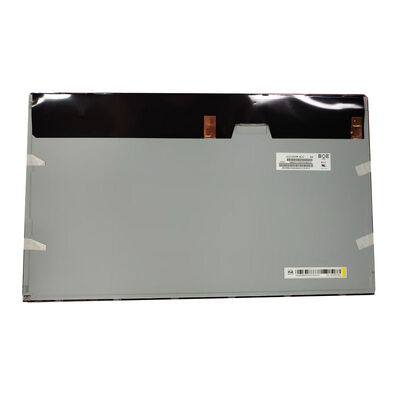

BOE 21.5 inch 1920x1080 FHD 16:9 Industrial Digital Signage TFT Display Module

Highlighted Advantages of BOE DV215FHM-R01

Full HD Visual Clarity: 21.5-inch FHD (1920*1080) resolution with 1000:1 contrast ratio and 350 cd/m² brightness, delivering crisp, vibrant images.
Ultra-Wide Viewing Experience: ADS panel with 89°*4 viewing angle ensures consistent color and brightness from all perspectives.
Enhanced Durability: Antiglare (25% haze) and 3H hard coating reduce reflections and resist scratches, ideal for industrial use.
Wide Temperature Operation: Supports -20 ~ 85 °C operating temperature, suitable for harsh industrial environments.
Reliable Backlight: 17S4P WLED backlight with 30,000-hour lifespan for long-term stable performance.

Products Description

Parameter Category	Parameter Details	Parameter Value
Basic Information	Brand	BOE
	Model	DV215FHM-R01
	Diagonal Size	21.5 inch
	Type	a-Si TFT-LCD, LCM
Display Parameters	Pixel Number	1920(RGB)*1080, 16:9, FHD
	Pixel Structure	RGB Vertical Stripe
	Active Area	476.64(H)*268.11(V) mm
	Physical Size	495.6(H)292.2(V)11.2(D) mm
	Mass	1.93Kgs (Typ.)
	Surface Coating	Antiglare (Haze 25%), Hard coating (3H)
	Luminance	350 cd/m² (Typ.)
	Contrast Ratio	1000:1 (Typ.) (TM)
	View Direction	Symmetry
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
	Response Time	14 (Typ.)(G to G) ms
	Operating Mode	ADS, Normally Black, Transmissive
	Support Color	16.7M, 72% NTSC
	Frame Rate	60Hz
Backlight & Power	Light Source	17S4P WLED, 30K hrs, Without Driver
	Touch Panel	Without
	Power Usage	21.86/25.6W (Typ./Max.)
Electrical Interface	Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
	Power Supply	5.0V (Typ.)
	Connector	UJU,IS100-L30O-C23,Pitch 1.0mm
Environmental Specifications	Operating Temperature	-20 ~ 85 °C
	Storage Temperature	-30 ~ 85 °C

Application Scenarios

Industrial Control & Automation: HMI panels, factory automation workstations, and industrial PCs.
Medical Equipment: Diagnostic monitors, patient monitoring systems, and laboratory instruments.
Digital Signage & Kiosks: Self-service terminals, information displays, and public advertising screens.
POS & Retail Systems: Point-of-sale displays, retail checkout terminals, and inventory management workstations.
Gaming & Arcade Cabinets: Industrial-grade displays for arcade machines and gaming terminals.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional

Touchscreen integration available as an optional feature.

About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
