5.7-Inch VGA 4:3 IPS TFT-LCD Module with 500nits Brightness for Industrial HMI Display
5.7-Inch VGA 4:3 IPS TFT-LCD Module with 500nits Brightness for Industrial HMI Display
Brand Name
IVO
Product Model
M057GWV3 R0
Country Of Origin
China
MOQ
1
Unit Price
$44/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
5.7-inch VGA IPS TFT-LCD module
,industrial HMI display with 500nits brightness
,4:3 TFT-LCD module for industrial use
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
5.7 Inch
Supplier Type:
Original Brand
Resolution:
640(RGB)×480, 4:3, VGA
Module Outsize(Mm):
127.2(H)×100.4(V)×8(D) Mm
Brightness:
500cd/m2
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Interface:
Parallel RGB (1 Ch, 6-bit), 40 Pins Connector
Touch Panel:
Withtout
Application:
Industrial
Max Ratings:
Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C, Vibration: 2.9G (28.4 M/s²)
Warranty:
12 Months
Product Description
Detailed Specifications And Features

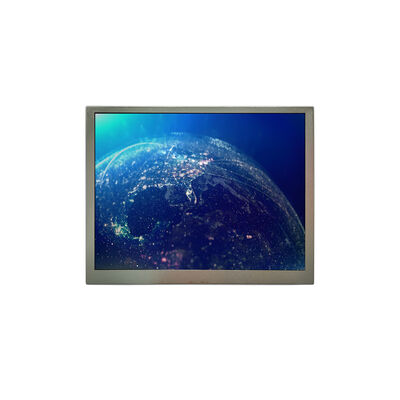

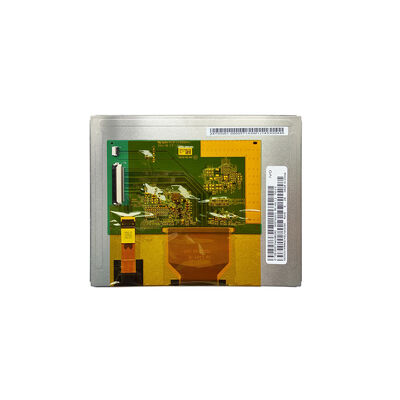

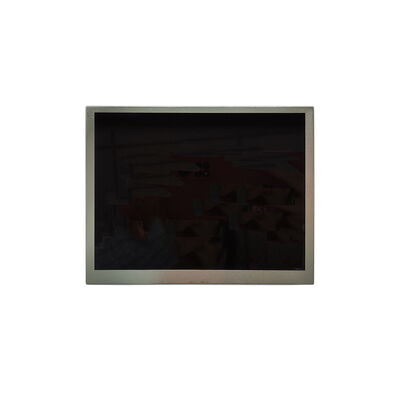

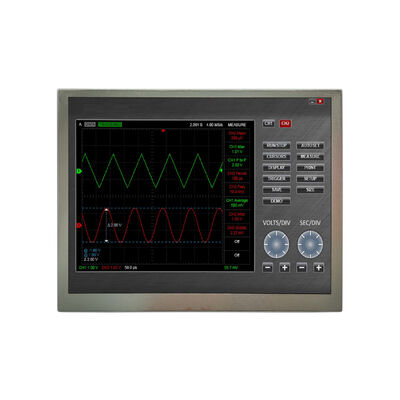

IVO 5.7-Inch VGA 4:3 IPS TFT-LCD Module with 500nits Brightness for Industrial HMI Display
High-performance 5.7-inch VGA IPS TFT-LCD display module with 640x480 resolution and 500 nits brightness, engineered for demanding industrial applications.
This model is currently in mass production. We offer large quantities with competitive pricing and welcome your inquiries and orders.
Key Features
- 640x480 VGA resolution for sharp display quality
- 500 cd/m² high brightness for excellent visibility
- IPS technology with 85/85/85/85 viewing angles for consistent image quality
- Parallel RGB interface with 40-pin connector for reliable data transmission
- 1000:1 contrast ratio for superior image quality
- WLED backlight with 50,000 hours lifespan
- 262K color support with 72% NTSC color gamut
- Vibration: 2.9G
Technical Specifications
| Brand | IVO |
| Model | M057GWV3 R0 |
| Diagonal Size | 5.7 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 640(RGB)*480, 4:3, VGA |
| Pixel Structure | RGB Vertical Stripe |
| Active Area | 115.2(H)*86.4(V) mm |
| Physical Size | 127.2(H)*100.4(V)*8(D) mm |
| Mass | 100g (Max.) |
| Surface Coating | Hard coating |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 262K, 72% NTSC |
| Designed For | Projector / Industrial Display |
| Power Consumption | 1.62W (Max.) |
| Light Source | 6S4P WLED, 50K hrs, Without Driver |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 40 pins Connector |
| Interface Connector | HRS,IMSA-9637S-40C-GFN4,Pitch 0.5mm |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C, Vibration: 2.9G (28.4 m/s²) |
Applications
- Industrial equipment and machinery
- CNC machine displays
- Industrial HMI & control panels
- Medical diagnostic equipment
- Vehicle/marine displays
- Industrial display replacement
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
Capacitive Touch Optional: Touchscreen integration available as an optional feature.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
