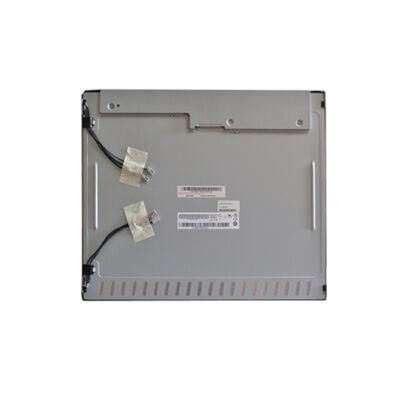

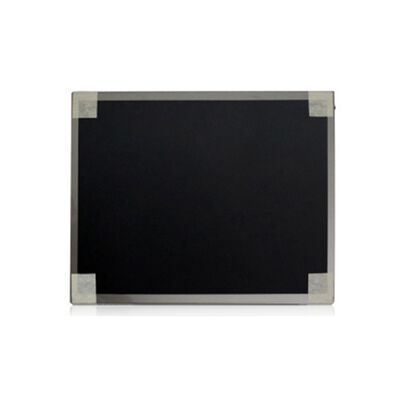

AUO G170EG01 V0 17.0 Inch SXGA 1280x1024 Industrial LCD Panel, 380cd/m², LVDS Interface, CCFL Backlight, TN TFT-LCD LCM for Industrial Control & HMI
AUO G170EG01 V0 17.0 Inch SXGA 1280x1024 Industrial LCD Panel, 380cd/m², LVDS Interface, CCFL Backlight, TN TFT-LCD LCM for Industrial Control & HMI
Brand Name
AUO
Product Model
G170EG01 V0
Country Of Origin
China
MOQ
1
Unit Price
$110 for 1-99pcs
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
10.4 inch industrial TFT display
,XGA resolution LCD module
,LVDS interface TFT display
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
17.0 Inch
Supplier Type:
Original Brand
Brand:
AUO
Resolution:
1280(RGB)×1024, SXGA 96PPI
Brightness:
380 Cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Operating Mode:
TN, Normally White, Transmissive
Touch Panel:
Without
Light Source:
CCFL [4 Pcs] , 50K Hours , W/O Driver
Interface Type:
LVDS (2 Ch, 8-bit) , 30 Pins Connector
Environment:
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Applications:
Industiral
Warranty:
12 Months
Product Description
Detailed Specifications And Features
AUO G170EG01 V0 17.0 Inch SXGA 1280x1024 Industrial LCD Panel, 380cd/m², LVDS Interface, CCFL Backlight, TN TFT-LCD LCM for Industrial Control & HMI
Product Status: Mass production started in Q4 2009. This model has been discontinued. Stock is limited, so please place your order promptly.
Key Features
- 17.0" SXGA High-Definition Panel: 1280(RGB)×1024 resolution, 96PPI, delivering sharp, clear visuals for industrial and professional applications
- Fast TN Response Time: 3.5/1.5ms (Typ.) Tr/Td, ensuring smooth dynamic display with zero motion blur for real-time monitoring and control
- Vivid Color Reproduction: 16.7M display colors, 72% NTSC color gamut, restoring true-to-life image details
Technical Specifications
| Brand | AUO | Model P/N | G170EG01 V0 |
|---|---|---|---|
| Diagonal Size | 17.0" | Panel Type | a-Si TFT-LCD.LCM |
| Resolution | 1280(RGB)×1024, SXGA 96PPI | Pixel Format | RGB Vertical stripe |
| Active Area | 337.92(W)×270.336(H) mm | Bezel Opening | 341.6(W)×274.0(H) mm |
| Outline Dimensions | 358.5 × 296.5 × 15.8 (H×V×D) | Surface Treatment | Antiglare, Hard coating (3H) |
| Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) |
| View Direction | 6 o'clock | Response Time | 3.5/1.5 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC | Light Source | 4 pcs CCFL, 50K hours, No Driver |
| Weight | 610g (Typ.) | Application | Industrial, Rugged Industry, Outdoor High Brightness |
| Frame Rate | 60Hz | Power Supply | 5.0V (Typ) |
| Interface Type | LVDS (2 ch, 8-bit), 30 pins Connector | Environment | Operating Temperature: -0°C to 50°C; Storage Temperature: -20°C to 60°C |
Applications
- Industrial control & automation systems
- Medical diagnostic equipment & patient monitors
- Industrial POS terminals & kiosks
- Embedded industrial computers & HMI panels
- Gaming & industrial display solutions
Customization Options
- Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses
- Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare)
- Can be equipped with HDMI driver boards for simplified customer debugging and evaluation
- Optional industrial-grade capacitive touch or resistive touch
