Mitsubishi 12.1-Inch Industrial TFT Display with 1024×768 XGA Resolution WLED Backlight 100K Hours and LVDS Interface 20 Pins

Name: Mitsubishi 12.1-Inch Industrial TFT Display with 1024×768 XGA Resolution WLED Backlight 100K Hours and LVDS Interface 20 Pins
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: AA121XN03
Price: 50.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AA121XN03
MOQ:	1
Price:	$220 for 1-99pcs
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1"

Brand:

Mitsubishi

Supplier Type:

Original Brand

Treatment:

Antiglare, Hard Coating (3H)

Resolution:

1024(RGB)×768, XGA 105PPI

Brightness:

700 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

4/12 (Typ.)(Tr/Td)

Operating Mode:

TN, Normally White, Transmissive

Touch Panel:

Without

Power Supply:

3.3V (Typ.)

Light Source:

WLED , 100K Hours , With LED Driver

Interface Type:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Environment:

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Applications:

Industrial

Warranty:

12 Months

Packaging Details:

20pcs/Box

Highlight:

1024×768 XGA Resolution Industrial TFT Display

WLED Backlight 100K Hours TFT-LCD Display Module

LVDS Interface 20 Pins LCD Panel

Product Description

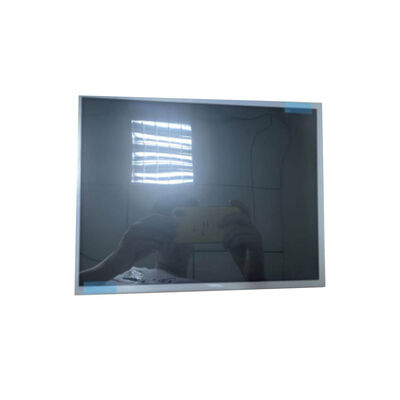

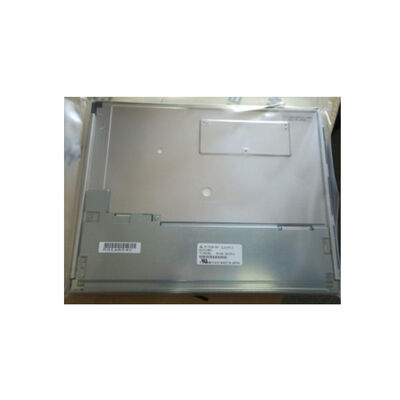

AA121XN03 12.1" Industrial Display Module

High-performance 12.1-inch TFT-LCD display panel with 1024×768 XGA resolution, designed for demanding industrial applications requiring reliable visual performance in wide temperature environments.

Product Status: This model started mass production in Q4 2014 and is no longer in production. Stock is limited, so please place your order promptly.

Key Features

1024×768 XGA resolution with 105 PPI for clear, detailed imagery
700 cd/m² high brightness display for excellent visibility
TN technology with 80/80/80/80 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
800:1 contrast ratio for superior image quality
WLED backlight with 100,000 hours lifespan
262K/16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Brand	Mitsubishi
Model P/N	AA121XN03
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD LCM
Resolution	1024(RGB)×768, XGA 105PPI
Active Area	245.76(W)×184.32(H) mm
Outline Dimensions	260.5(W)×203(H)×10(D) mm
Luminance	700 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	80/80/80/80 (Typ.)
Operating Mode	TN, Normally White, Transmissive
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

Applications

Industrial equipment and machinery
Elevator Display
Security Monitor Display
Automation Equipment Display
CNC Machine Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
