8.0" Industrial TFT Display with 800×600 SVGA Resolution and Parallel RGB Interface TFT-LCD Module
8.0" Industrial TFT Display with 800×600 SVGA Resolution and Parallel RGB Interface TFT-LCD Module
Brand Name
Innolux
Product Model
EJ080NA-05B
Country Of Origin
China
MOQ
1
Unit Price
$25/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
8.0" Display Size Industrial TFT Display
,800×600 SVGA Resolution TFT-LCD Module
,300 cd/m² Brightness LCM Display
Panel Type:
A-Si TFT-LCD, LCM
Supplier Type:
Original Brand
Display Size:
8.0"
Resolution:
800(RGB)×600, SVGA 125PPI
Module Outsize(Mm):
183(W)×141(H) ×5.9(D) Mm
Viewing Angle:
70/70/50/70 (Typ.)(CR≥10)
Brightness:
300cd/m2
Contrast Ratio:
1000:1 (Typ.) (TM)
Interface:
Parallel RGB (1 Ch, 6/8-bit) , 50 Pins FPC
Backlight:
3S9P WLED , 20K Hours , Without Driver
Touch Panel:
Withtout
Max. Ratings:
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Application:
Digital Photo Frame, Portable DVD Player
MPQ:
30pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features
EJ080NA-05B

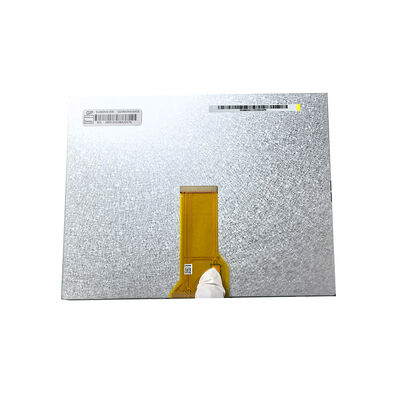

Innolux EJ080NA-05B 8.0" Display Module with 800×600 SVGA resolution and RBG interface, designed for Smart Home,Iot device,Portable DVD Player, Navigation and Digigtal Photo Frame applications. This industrial-grade display delivers reliable visual performance without integrated touch functionality.
WLED Backlight, 6/8 bit, Matte 2 in 1 FPC, DE/SYNC mode selectable
Key Features
- 8.0-inch diagonal TFT-LCD display with 125 PPI pixel density
- 800×600 SVGA resolution for clear image quality
- Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
- 300 cd/m² high brightness for excellent visibility
- 1000:1 contrast ratio with 262K/16.7M color support
- Operating temperature range: -20°C to 70°C
- WLED backlight with 20,000-hour lifespan
Technical Specifications
| Panel Model | EJ080NA-05B | Panel Brand | Innolux |
| Size | 8.0 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 125PPI | Pixel Format | RGB Vertical Stripe |
| Active Area | 162(W)×121.5(H) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active Area | 183(W)×141(H) ×5.9(D) mm | Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 50% NTSC | Surface | Antiglare |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Touch Screen | Without |
| Brightness | 300 cd/m² (Typ.) | Lamp Type | 3S9P WLED, 20K hours, Without Driver |
| Contrast Ratio | 1000:1 (Typ.) (TM) | Bezel Opening | 164.8(W)×124.3(H) mm |
| Frequency | 60Hz | Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| LCM Interface Type | Parallel RGB (1 ch, 6/8-bit), 50 pins FPC | Environment | Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C |
Customization Options

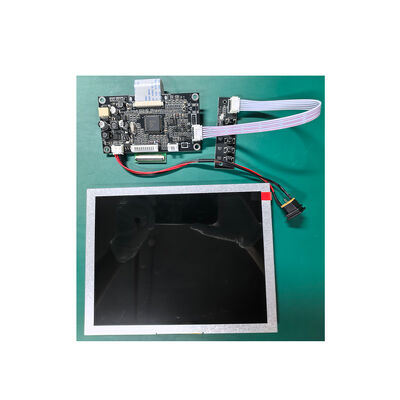

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation. Optional industrial-grade capacitive touch available.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
