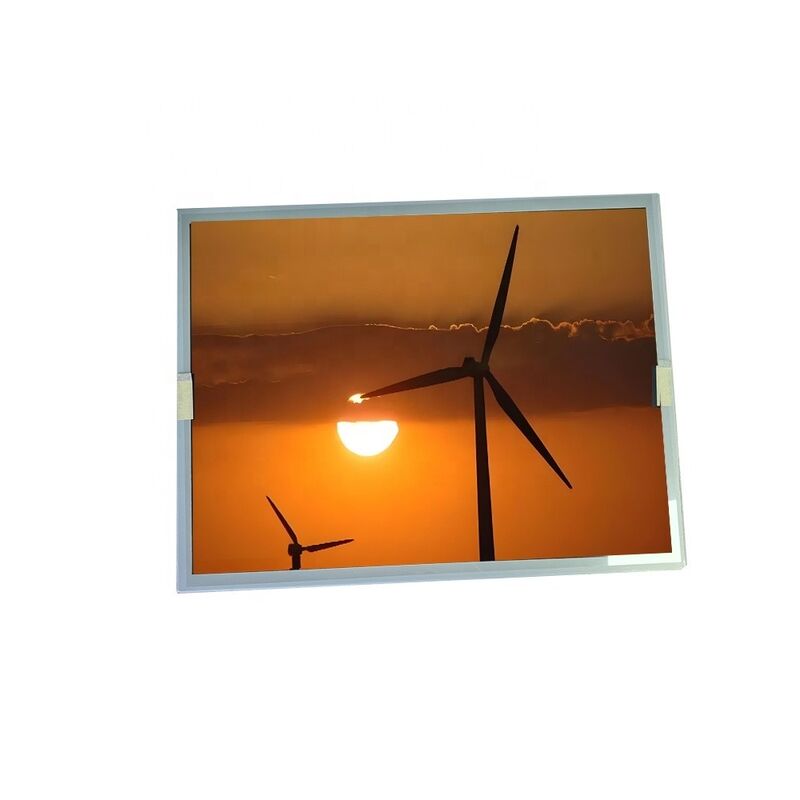

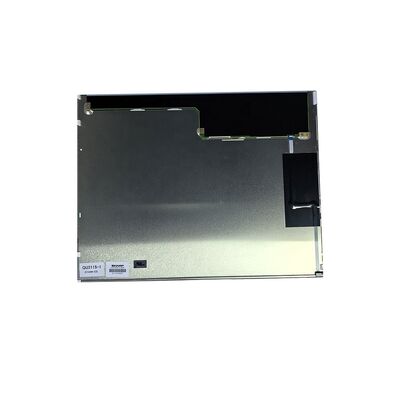

LQ150X1LX95 Sharp IPS LVDS Industrial TFT Display Monitor Touchscreen 400nits

Name: LQ150X1LX95 Sharp IPS LVDS Industrial TFT Display Monitor Touchscreen 400nits
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LQ150X1LX95
Price: 50.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ150X1LX95
MOQ:	1
Price:	$99/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

LQ150X1LX95.pdf

Type:

TFT

Display Size:

15 Inch

Supplier Type:

Original Brand

Brand:

Sharp

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)x768, XGA 85PPI, 1024(RGB)x768, XGA 85PPI

Module Outsize(mm):

326.5(W)x253.5(H)x10.1(D) Mm

Display Type:

ASV, Normally Black, Transmissive

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Brightness:

400 Nits, 400cd/m2

Contrast Ratio:

1500:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) 20 Pins Connector

Backlight Type:

WLED , 70K Hours , With LED Driver

Operating Temperature:

Operating Temp.: -20 ~ 70 °C

Touch Screen:

Without

Application:

Industrial

MPQ:

10pcs

Warranty:

12 Months

Highlight:

LQ150X1LX95 Industrial TFT Display

Industrial TFT Display Touchscreen

LVDS tft monitor touchscreen

Product Description

LQ150X1LX95 Sharp 15 Inch 1024x768 XGA IPS Industrial LCD Display Module

High-performance 15-inch TFT-LCD display module with 1024x768 XGA resolution and LVDS interface, designed for industrial applications requiring reliable visual performance.

Product Overview

The LQ150X1LX95 is a 15-inch diagonal TFT-LCD display panel developed by Sharp. Mass production for this part starts on Q1, 2014.

This industrial-grade display module delivers exceptional visual performance without integrated touch functionality, featuring IPS technology for wide viewing angles.

Key Features

1024×768 XGA resolution with 85 PPI for clear, detailed imagery
IPS technology with 85/85/85/85 viewing angles for clarity from multiple perspectives
High brightness 400 cd/m² display suitable for various lighting conditions
LVDS interface with 20-pin connector for reliable data transmission
1500:1 contrast ratio for superior image quality
WLED backlight with 70,000 hours lifespan and integrated LED driver
262K/16.2M color support with 70% NTSC color gamut

Technical Specifications

Panel Model	LQ150X1LX95
Panel Brand	Sharp
Size	15 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Active Area	304.128(W)×228.096(H) mm
Module Dimensions	326.5(W)×253.5(H)×10.1(D) mm
Display Mode	ASV, Normally Black, Transmissive
Response Time	35 ms (Typ.)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Interface	LVDS (1 ch, 6/8-bit) 20 pins Connector
FPC Connector	HRS, DF14H-20P-1.25H, Pitch 1.25mm
Power Supply	3.3V (Typ.)
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-25°C ~ 70°C
Frame Rate	60Hz

Applications

Industrial equipment and machinery
Industrial monitoring and control systems
Healthcare medical devices

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
