Original 10 Inch TFT Display LCD Capacitive Touchscreen Panel G150XNE-L01 Innolux

Name: Original 10 Inch TFT Display LCD Capacitive Touchscreen Panel G150XNE-L01 Innolux
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: G150XNE-L01
Price: 42.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	G150XNE-L01
MOQ:	1
Price:	$84/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

15 Inch

Supplier Type:

Original Brand

Backlight Type:

WLED , 70K Hours , With LED Driver

Resolution:

1024(RGB)x768, XGA 85PPI, 1024(RGB)x768, XGA 85PPI

Brightness:

500 Cd/m² (Typ.), 500 Cd/m² (Typ.)

Operating Temperature:

Operating .: -30 ~ 80 °C ; Storage. : -40 ~ 85 °C

Display Type:

NPVA, Normally Black, Transmissive

Mounting Type:

Connector

Screen Size:

326.5(W)x253.5(H) X9.6(D) Mm

Communication Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Panel Type:

A-Si TFT-LCD, LCM

Module Outsize(mm):

326.5(W)x253.5(H) X9.6(D) Mm

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Signal Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Without

Warranty:

12months

Application:

Industrial Display Automotive Display

Environment:

Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C

Packaging Details:

16pcs/Box

Highlight:

10 inch tft display touchscreen

Innolux 10 inch tft display

Innolux tft lcd capacitive touchscreen

Product Description

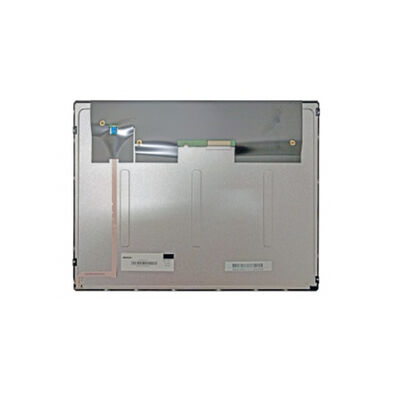

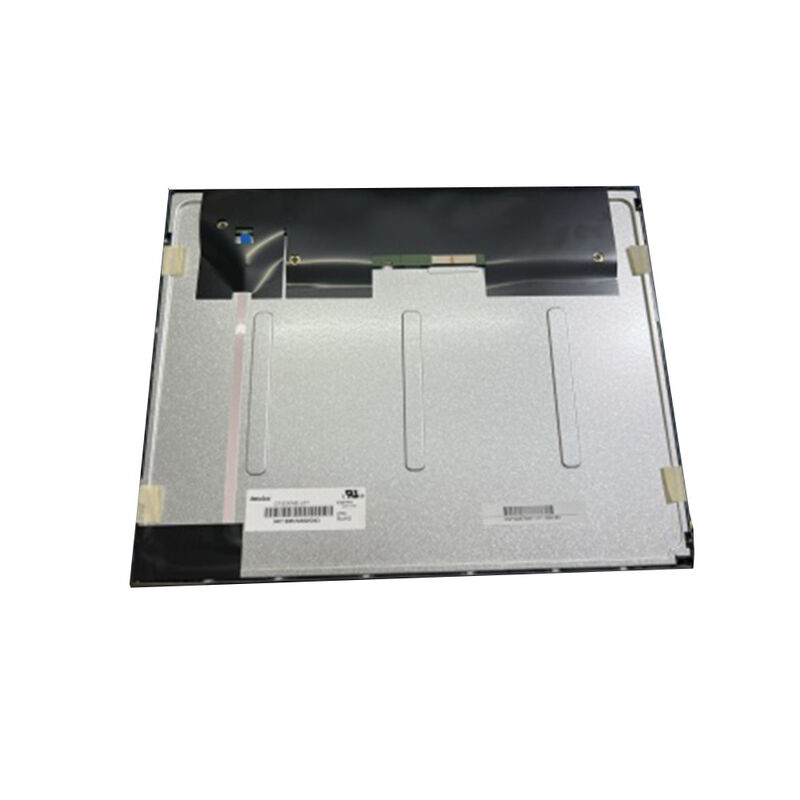

Original Innolux G150XNE-L01 15 Inch Industrial Display Module

High-performance 15-inch TFT-LCD display panel with 1024×768 XGA resolution and 500 nits brightness, featuring LVDS interface and wide temperature range for automotive and industrial applications.

Product Overview

The G150XNE-L01 is a 15-inch diagonal TFT-LCD display panel developed by Innolux. Mass production for this model starts in Q2 2017. This industrial-grade display module delivers exceptional visual performance with wide temperature operation capabilities.

Key Features

1024×768 XGA resolution with 85 PPI for clear, detailed imagery
High brightness 500 cd/m² for excellent visibility in various lighting conditions
Wide 88/88/88/88 viewing angle ensures clarity from multiple perspectives
LVDS interface with 20-pin connector for reliable data transmission
Wide temperature range: -30°C to 80°C operation, -40°C to 85°C storage
16.7 million color depth with 72% NTSC color gamut
2500:1 high contrast ratio for superior image quality

Technical Specifications

Panel Model	G150XNE-L01
Panel Brand	Innolux
Size	15 Inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Active Area	304.128(W)×228.096(H) mm
Module Dimensions	326.5(W)×253.5(H)×9.6(D) mm
Display Mode	NPVA, Normally Black, Transmissive
Response Time	13/5 ms (Typ.)(Tr/Td)
Display Colors	262K/16.7M, 72% NTSC
Brightness	500 cd/m² (Typ.)
Contrast Ratio	2500:1 (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
FPC Connector	CID520D1HR0-NH, Pitch 1.25mm
Power Supply	3.3V (Typ.)
Light Source	WLED, 70K hours, With LED Driver
Operating Temperature	-30°C to 80°C
Storage Temperature	-40°C to 85°C
Frame Rate	60Hz
Touch	Without

Applications

This display module is specifically designed for industrial equipment, automotive displays, industrial monitoring systems, and various rugged environment applications requiring wide temperature operation and high reliability.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
