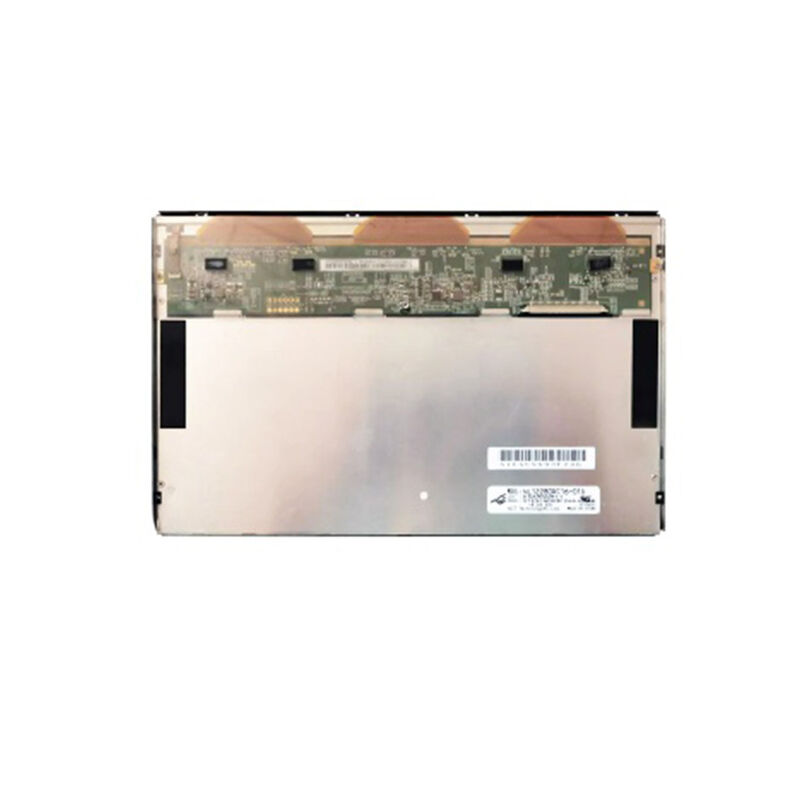

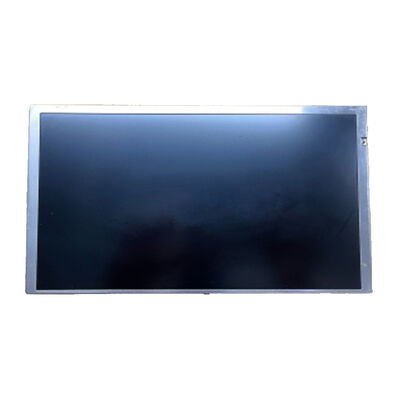

10.1 Inch 1280x800 WXGA Touch TFT Display LCD Module NL12880AC16-01D

Name: 10.1 Inch 1280x800 WXGA Touch TFT Display LCD Module NL12880AC16-01D
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: NL12880AC16-01D
Price: 50.00 USD
Availability: InStock

Brand Name:	NLT
Model Number:	NL12880AC16-01D
MOQ:	1
Price:	$188/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

10.1 Inch

Supplier Type:

Original Brand

Backlight Type:

WLED , 70K Hours , With LED Driver

Resolution:

1280(RGB)x800, WXGA 149PPI, 1280(RGB)x800, WXGA 149PPI

Brightness:

400 Nits, 400 Cd/m² (Typ.)

Operating Temperature:

Operating Temperature: -20 ~ 70 °C ; Storage Temp

Display Type:

UA-SFT, Normally Black, Transmissive

Mounting Type:

Connector

Screen Size:

235.4(W)x148.8(H) X10.2(D) Mm

Communication Interface:

LVDS (1 Ch, 6/8-bit) , 30 Pins Connector

Panel Type:

A-Si TFT-LCD, LCM

Outline Dim.:

235.4(W)x148.8(H) X10.2(D) Mm

Work Mode:

UA-SFT, Normally Black, Transmissive

View Direction:

88/88/88/88 (Typ.)(CR≥10)

Backlight:

WLED , 70K Hours , With LED Driver

Signal Type:

LVDS (1 Ch, 6/8-bit) , 30 Pins Connector

Color Depth:

262K/16.7M 50% NTSC

Warranty:

12 Months

Highlight:

LCD touch tft display

1280x800 touch tft display

NL12880AC16-01D

Product Description

10.1 Inch 1280*800 WXGA TFT-LCD Screen IPS Wide Temperature LCM Display Module

High-performance industrial display module with LED driver connector mounting, designed for demanding applications across wide temperature ranges.

Product Overview

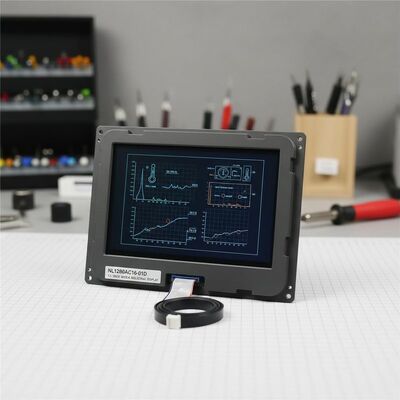

The NL12880AC16-01D is a 10.1-inch diagonal TFT-LCD display module developed by NLT. This industrial-grade panel features WXGA resolution and wide temperature operation for reliable performance in challenging environments.

Key Features

Wide Temperature Range: Operating from -30°C to 80°C, Storage from -30°C to 80°C
High Brightness: 400 cd/m² typical luminance for excellent visibility
Wide Viewing Angle: 88/88/88/88 symmetry with UA-SFT technology
High Contrast Ratio: 800:1 typical for sharp image quality
Long-life Backlight: WLED with 70,000 hours typical lifespan
Industrial Interface: LVDS signal with 30-pin connector
Surface Treatment: Antiglare with hard coating (3H)

Technical Specifications

Parameter	Specification
Brand	NLT
Model P/N	NL12880AC16-01D
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD LCM
Resolution	1280(RGB)*800, WXGA (149 PPI)
Active Area	216.96*135.6 mm
Outline Dimensions	235.4148.810.2 mm
Luminance	400 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	88/88/88/88 (CR≥10)
Response Time	13/12 ms (Tr/Td)
Color Depth	262K/16.7M, 50% NTSC
Backlight	WLED with LED Driver
Interface	LVDS (1 ch, 6/8-bit), 30-pin Connector
Refresh Rate	60Hz
Mass	335g (Typical) / 385g (Maximum)

Environmental Specifications

Parameter	Range
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

Why Choose Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, reliable service and first-tier quality for all your display needs.
