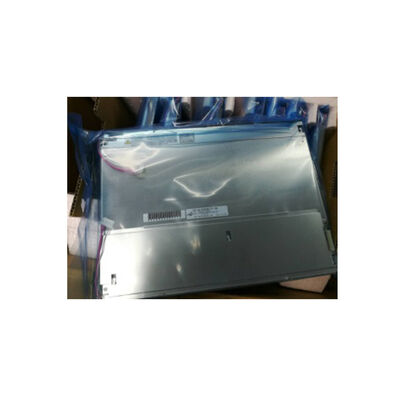

12.1 Inch Industrial TFT Display with 1100 Nits Outdoor Ultra High Brightness and SVGA 800x600 Resolution

Brand Name:	NLT
Model Number:	NL8060BC31-36
MOQ:	1
Price:	$265/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1"

Supplier Type:

Original Brand

Outline Dim.:

280(W)x209(H)x17(D) Mm

Viewing Angle:

70/70/45/55 (Typ.)(CR≥10)

Color Depth:

262K 40% NTSC

Resolution:

800(RGB)x600, SVGA 82PPI

Brightness:

1100 Cd/m² (Typ.)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Backlight:

CCFL [4 Pcs] , W/O Driver

Signal Type:

CMOS (1 Ch, 6-bit) , 41 Pins Connector

Environment:

Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)

Touchscreen:

Without

Warranty:

12 Months

Highlight:

lcd industrial tft display

panel tft lcd display

panel industrial tft display

Product Description

12.1 Inch TN TFT-LCD Panel SVGA 800x600 CMOS Outdoor Ultra High Brightness 1100 Nits Industrial Display

Industrial Display Module Overview

High-performance 12.1-inch TFT-LCD display module with 800×600 SVGA resolution, engineered for demanding industrial applications requiring reliable operation and excellent visibility in outdoor environments.

Product Discontinuation Notice: This product has been discontinued (EOL). Stock is limited, so please place your order promptly if needed.

Key Features

800×600 SVGA resolution with 82 PPI for clear display performance
1100 cd/m² ultra high brightness for excellent visibility in bright outdoor environments
TN technology with 70/70/45/55 viewing angles for industrial applications
CMOS interface with 41-pin connector for reliable data transmission
600:1 contrast ratio for good image quality
CCFL backlight with 4 pieces, supplied without driver
262K color support with 40% NTSC color gamut
Operating temperature range: -10°C to 70°C
Extended storage temperature range: -20°C to 80°C

Technical Specifications

Brand	NEC	Model P/N	NL8060BC31-36
Diagonal Size	12.1"	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI	Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm	Designed For	Industrial, Outdoor High Brightness
Outline Dimensions	280(W)×209(H)×17(D) mm	Surface Treatment	Clear, Hard Coating (3H)
Luminance	1100 cd/m² (Typical)	Contrast Ratio	600:1 (Typical)
Viewing Angle	70/70/45/55 (Typical)	Response Time	8/25 ms (Typical)
Work Mode	TN, Normally White, Transmissive	Color Depth	262K, 40% NTSC
Backlight	CCFL [4 pcs], Without Driver	Touchscreen	Without
Refresh Rate	60Hz	Voltage Supply	3.3/5.0V (Typical)
Signal Type	CMOS (1 ch, 6-bit), 41 pins Connector	Mass	900g (Typical)

Applications

Industrial equipment and machinery CNC machine displays ndustrial Control Display Outdoor High Brightness

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional: Touchscreen integration solutions available upon request.
