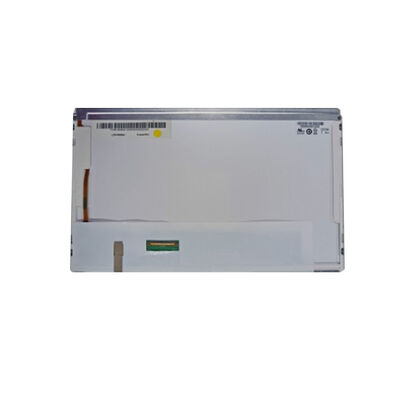

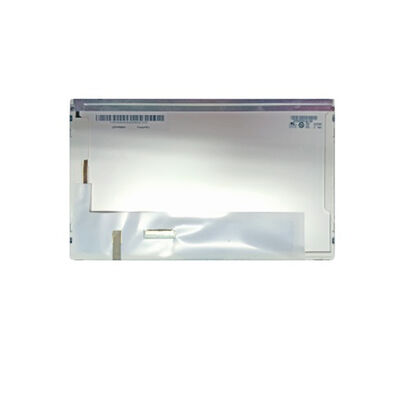

10.1inch LED Backlight WSVGA 1024x600 Resolution LVDS Interface Reverse Industrial Equipment LCM Display AUO G101STN01.0

Brand Name:	AUO
Price:	$58/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

10.1"

Supplier Type:

Original Brand

Backlight Type:

LED

Resolution:

1024(RGB)x600, WSVGA 117PPI, 1024(RGB)x600, WSVGA 117PPI

Brightness:

250, 250 Cd/m² (Typ.)

Operating Temperature:

Operating Temperature: -10 ~ 60 °C

Display Type:

TFT

Mounting Type:

Connector

Screen Size:

235(W)x143(H)x5.2(D) Mm

Communication Interface:

LVDS (1 Ch, 6/8-bit) 40 Pins Connector

Panel Type:

A-Si TFT-LCD, LCM

Outline Dim.:

235(W)x143(H)x5.2(D) Mm

Viewing Angle:

70/70/60/60 (Typ.)(CR≥10)

Backlight:

WLED , 50K Hours , With LED Driver

Signal Type:

LVDS (1 Ch, 6/8-bit) 40 Pins Connector

Environment:

Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

Touchscreen:

Without

Warranty:

12 Months

Highlight:

10.1inch tft lcd display

10.1inch industrial tft display

wsvga tft lcd display

Product Description

Products Description

Brand	AUO	Model P/N	G101STN01.0
Diagonal size	10.1"	Panel Type	a-Si TFT-LCD,LCM
Resolution	1024(RGB)×600, WSVGA 117PPI	Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm	Designed For	Industrial
Outline(mm)	235(W)×143(H)×5.2(D) mm	Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m2 (Typ.)	Contrast Ratio	500:1 (Typ.) (TM)
Wiewing Angle	70/70/60/60 (Typ.)(CR≥10)	Response	7/9 (Typ.)(Tr/Td)
Good View at	Symmetry	Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 45% NTSC	Backlight	WLED , 15K hours , With LED Driver
Mass	180g (Typ.)	Touchscreen	Without
Refresh Rate	60Hz	Voltage Supply	3.3V (Typ.)
Signal Type	LVDS (1 ch, 6/8-bit) 40 pins Connector	Max, Ratings	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
