12.3 inch High Brightness TFT-LCD Stretched Bar Display Screen for Wide Temperature Environments and 1920x720 Resolution

Brand Name

Hannstar

Country Of Origin

China

Unit Price

$120/pieces 1-79 pieces

Product Details

Highlight:

lcd industrial tft display

high brightness tft lcd display

high brightness industrial tft display

Type: TFT

Display Size: 12.3 Inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1920(RGB)x720 167PPI

Module Outsize(Mm): 308.1(W)x130(H) X15.6(D) Mm

Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)

Brightness: 850 Cd/m² (Typ.)

Signal Interface: LVDS (2 Ch, 8-bit) , 50 Pins Connector

Touch Panel: Without

Warranty: 12months

Application: Rugged Industry Outdoor High Brightness Industrial Display

Environment: Operating Temperature: 30 ~ 85 °C ; Storage Temperature: -30~ 85°C

Product Description

Detailed Specifications And Features

12.3 inch High Brightness TFT-LCD Stretched Bar Display Screen for Wide Temperature Environments and 1920x720 Resolution

Products Description

Panel Model	HSD123KPW1-A30	Panel Brand	Hannstar
Size (inch )	12.3 Inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 167PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	308.1(W)×130(H) ×15.6(D) mm	Display Mode	IPS Pro, Normally Black, Transmissive
LCD Active area(mm)	292.032(W)×109.512(H) mm	Response Time	17/18 (Typ.)(Tr/Td)
Display Colors	16.7M 71% NTSC	Light Source	11S4P WLED , 30K hours , Without Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch	Without
Brightness	1000 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	Used for	Rugged Industry, Outdoor High Brightness, Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 85 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 85°C
			Vibration Level: 2.9G (28.4 m/s²)
LCM Interface Type	LVDS (2 ch, 8-bit) , 50 pins Connector	FPC connector	Aorora, F31L-1A7H1-21050, Pitch 0.5mm

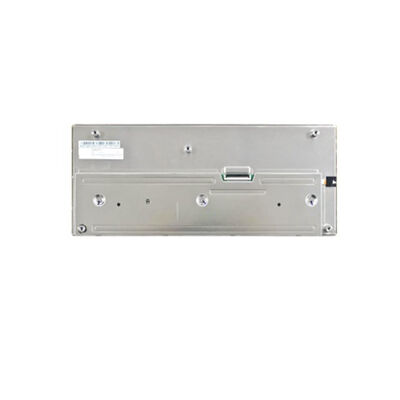

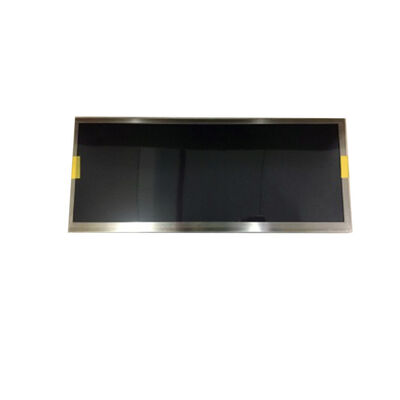

Details Images
