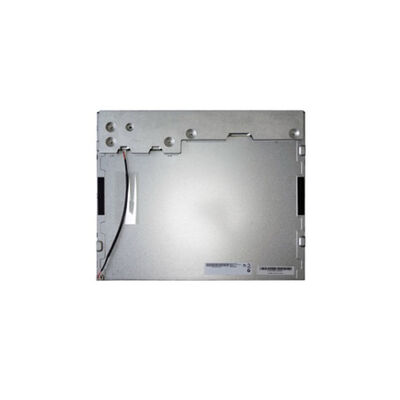

1280x1024 SXGA TFT-LCD sRGB DCI-P3 Wide Color Gamut Wide Temperature Industrial Display Screen Module G190ETN01.4 19 inch

Brand Name:	AUO
Price:	$170/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

19 Inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)x1024, SXGA 86PPI

Module Outsize(mm):

396 X 324 X 13.38 (HxVx D)

Viewing Angle:

85/85/80/80 (Typ.)(CR≥10)

Brightness:

450cd/m2

Signal Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Touch Panel:

Without

Application:

Industrial

Warranty:

12months

Enviroment:

Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C

Highlight:

lcd industrial tft display

module tft lcd display

module industrial tft display

Product Description

Products Description

Panel Model	G190ETN01.4	Panel Brand	AUO
Size (inch )	19inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	396(H)×324(V)×13.38(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	376.32(W)×301.056(H) mm	Response Time	7/3 (Typ.)(Tr/Td)
Display Colors	16.7M 90% NTSC	Light Source	WLED [4 strings] , 50K hours , With LED Driver
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Touch	Without
Brightness	450cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 85 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 85°C
LCM Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	FPC connector	HRS, DF14H-30P-1.25H(56), Pitch 1.25mm
