Industrial Equipment LCM Display Module 10.1 Inch 1024x600 WSVGA TFT-LCD Panel with 40 pins Connector and LVDS Interface

Brand Name:	IVO
Price:	$47/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

10.1 Inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)x600, WSVGA 117PPI

Module Outsize(mm):

235(W)x143(H)x8.04(D)

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Brightness:

350cd/m2

Signal Interface:

LVDS (1 Ch, 8-bit) , 40 Pins Connector

Touch Panel:

Without

Application:

Industrial

Warranty:

12months

Input Voltage:

3.3V (Typ.)

Highlight:

lcm tft lcd display

lcm industrial tft display

module tft lcd display

Product Description

Products Description

Panel Model	M101GWN9 R2	Panel Brand	IVO
Size (inch )	10.1nch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	235×143×8.04 (H×V×D)	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	222.72(W)×125.28(H) mm	Response Time	16 (Typ.)(Tr+Td) ms
Display Colors	16.7M 45% NTSC	Light Source	WLED , 30K hours , With LED Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	350 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70 °C
LCM Interface Type	LVDS (1 ch, 8-bit) , Connector 40 pins	FPC connector	STM, MSAK24025P40D, Pitch 0.5mm

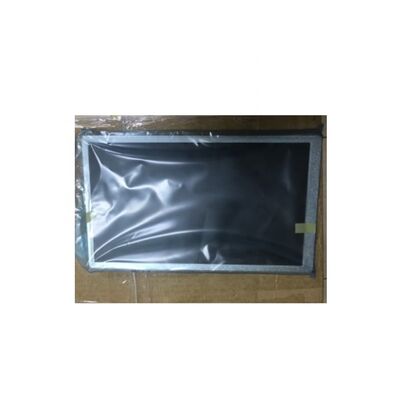

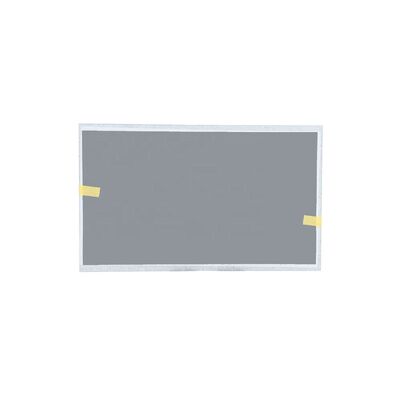

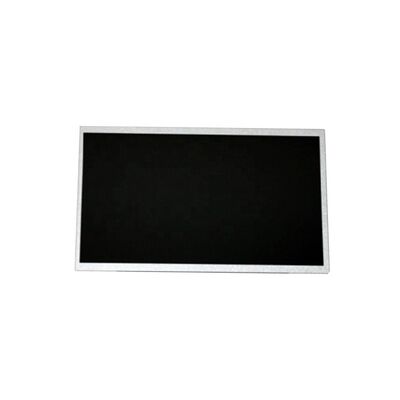

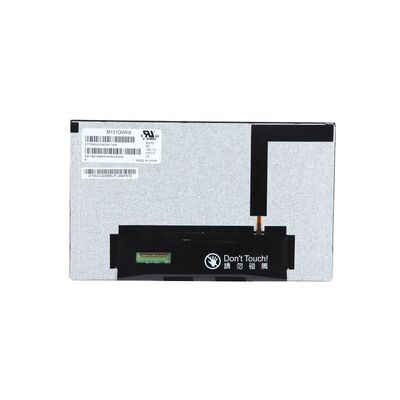

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
