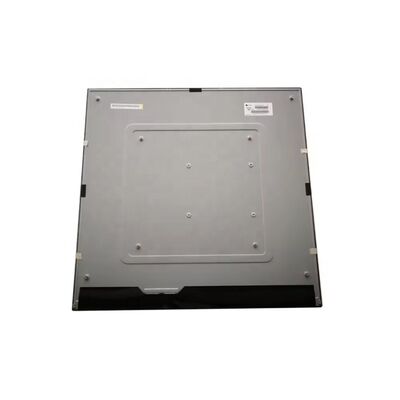

BOE DV332X2M-NV0 33-Inch IPS TFT LCD Panel LVDS Industrial Square Display Video Wall Digital Signage Module for Benefit

Brand Name:	BOE
Price:	$370/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

33inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)x1920 81PPI

Module Outsize(mm):

612.96(W)x612.96(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

450cd/m2

Interface:

LVDS (4 Ch, 8-bit) , 92 Pins Connector

Touch Screen:

Without

Application:

Industrial Square Display Video Wall Digital Signage

MPQ:

8pcs

Warranty:

12 Months

Highlight:

boe tft lcd display

boe industrial tft display

ips tft lcd display

Product Description

Products Description

Panel Model	DV332X2M-NV0	Panel Brand	BOE
Size (inch )	33inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1920 81PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	612.96(W)×612.96(H) mm	Display Mode	ADS, Normally Black, Transmissive
LCD Active area(mm)	596.16(W)×596.16(H) mm	Response Time	8 (Typ.)(G to G)
Display Colors	16.7M 72% NTSC	Light Source	WLED , 30K hours , Without Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	420 cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Used for	Industrial, Video Wall, Digital Signage, Square Display
Videowall Seam	16.8 mm (active to active seam)	Enviroment	Storage Temp.: -20~ 60 °C
Videowall Seam	16.8 mm (active to active seam)	Enviroment		Operating Temp.: -0 ~ 50 °C
LCM Interface Type	LVDS (4 ch, 8-bit) , 92 pins Connector	FPC connector	UJU, IS050-C51B-C39, Pitch 0.5mm UJU, IS050-C41B-C39, Pitch 0.5mm

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
