Innolux 640x480 Industrial TFT Display LCD Digital Signage 1000cd/M2 S370AJ1-LE1 OEM

Name: Innolux 640x480 Industrial TFT Display LCD Digital Signage 1000cd/M2 S370AJ1-LE1 OEM
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: S370AJ1-LE1
Price: 50.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	S370AJ1-LE1
MOQ:	1
Price:	$305/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

S370AJ1-LE1 PID Approval�...3).pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

37inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)×540 53PPI

Module Outsize(mm):

923.3(W)×277.1(H) ×28.4(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

1000cd/m2

Contrast Ratio:

5000:1 (Typ.) (TM)

Interface:

LVDS (2 Ch, 8-bit) , 51 Pins Connector

Lamp Type:

WLED , 50K Hours , With LED Driver

Touch Screen:

Without

Application:

Digital Signage Display, Stretched Bar Display, Outdoor High Brightness

Environment:

Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

MPQ:

10pcs

Warranty:

12 Months

Highlight:

Innolux Industrial TFT Display

OEM Industrial TFT Display

640x480 tft display Signage

Product Description

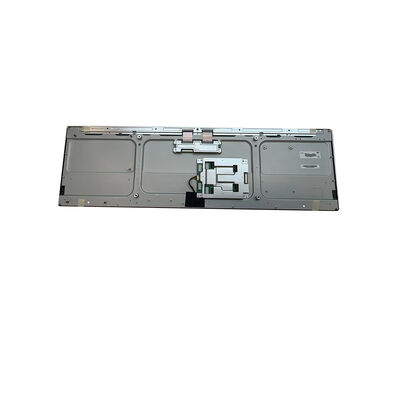

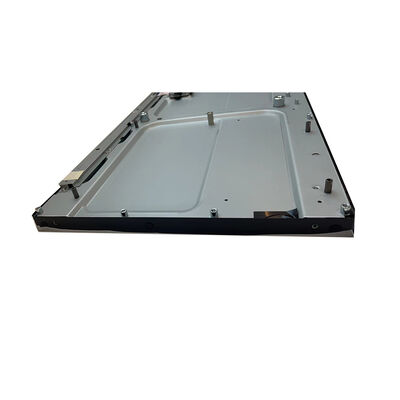

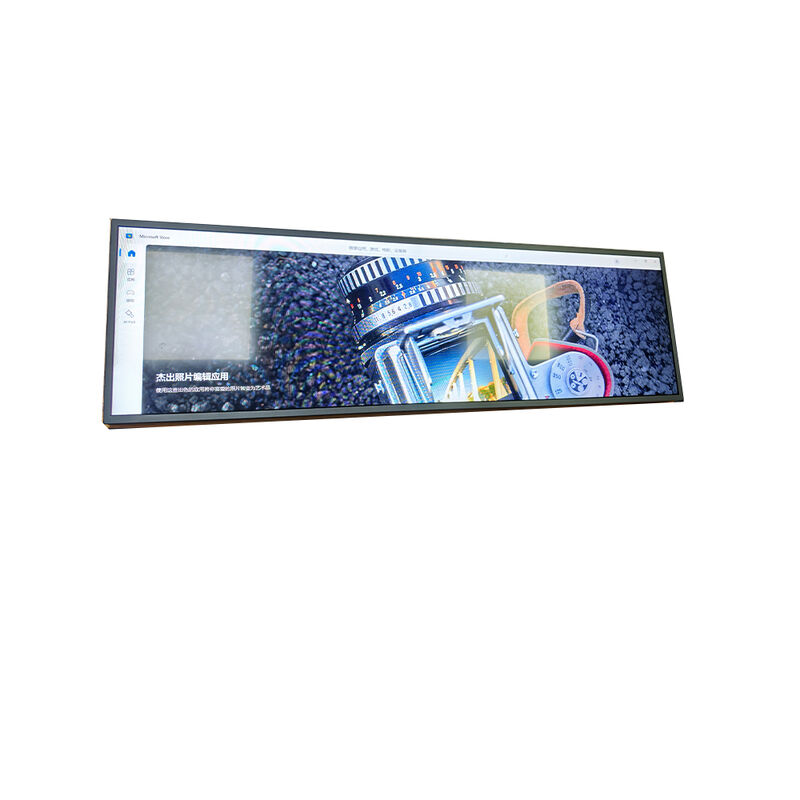

Innolux S370AJ1-LE1 36.0-Inch Bar LCD Display

High-performance 37-inch bar TFT-LCD display module with 1920×540 resolution, designed for digital signage and advertising applications requiring superior visibility and reliability.

Product Overview

The S370AJ1-LE1 is a 37-inch diagonal bar TFT-LCD display panel developed by Innolux. This industrial-grade display module delivers exceptional visual performance with ultra-wide aspect ratio for detailed imagery in digital signage applications.

Key Features

1920×540 resolution with 53 PPI for clear, detailed imagery
1000 cd/m² brightness for excellent visibility in various lighting conditions
Super MVA technology with 89/89/89/89 viewing angles for consistent color
LVDS interface with 2 channels for reliable data transmission
5000:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 72% NTSC color gamut

Technical Specifications

Panel Model	S370AJ1-LE1	Panel Brand	Innolux
Size	37 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×540, 53PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	923.3(W)×277.1(H)×28.4(D) mm	Display Mode	Super MVA, Normally Black, Transmissive
Active Area	904.32(W)×254.34(H) mm	Response Time	11ms (Typ.)(G to G)
Display Colors	16.7M, 72% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	1000 cd/m² (Typ.)	Power Supply	12V (Typ.)
Contrast Ratio	5000:1 (Typ.) (TM)	Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit), 51 pins Connector	FPC Connector	P-two, 187059-51221, Pitch 0.5mm
Operating Temperature	-20~60°C	Storage Temperature	-20~60°C

Applications

Digital signage and advertising displays
Stretched bar display systems
Native bar display applications
Outdoor high brightness environments
Industrial monitoring and information displays

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
