Quality 800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products factory

800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products

Brand Name

AUO

Country Of Origin

China

Unit Price

$82/pieces 1-99 pieces

Product Details

Highlight:

lcd industrial tft display

module tft lcd display

module industrial tft display

Type: TFT

Display Size: 6.5inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 640(RGB)x480, VGA 122PPI

Module Outsize(Mm): 153(W)*118(H)*11.2(D) Mm

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Brightness: 800cd/m2

Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel: Withtout

Application: Industrial Equipment, Outdoor High Brightness

MPQ: 80pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	G065VN01 V221	Panel Brand	AUO
Size (inch )	6.5inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 122PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	153(W)×118(H) ×11.2(D) mm	Display Mode	AHVA, Normally Black, Transmissive
LCD Active area(mm)	132.48(W)×99.36(H) mm	Response Time	10/15 (Typ.)(Tr/Td) ms
Display Colors	262K/16.2M 55% NTSC	Light Source	WLED , 70K hours , With LED Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	800 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Used for	Industrial, Outdoor High Brightness
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 80°C
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	FPC connector	STM, MSB24013P20, Pitch 1.0mm

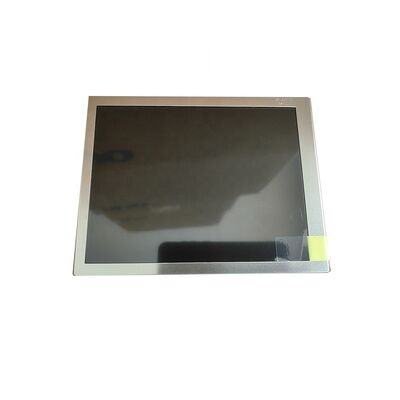

Details Images

800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
