Quality 500cd/m2 Brightness Industrial 8.4Inch VGA 640x480 Wide Temperature Panel LCD Module with 2.0G Vibration Resistance factory

500cd/m2 Brightness Industrial 8.4Inch VGA 640x480 Wide Temperature Panel LCD Module with 2.0G Vibration Resistance

Brand Name

NEC

Country Of Origin

Japan

Unit Price

$220/pieces 1-99 pieces

Product Details

Highlight:

8.4inch tft lcd display

8.4inch industrial tft display

640x480 tft lcd display

Type: TFT

Display Size: 8.4 Inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 640(RGB)x480, VGA 95PPI

Module Outsize(Mm): 200(W)x152(H) X8.7(D) Mm

Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)

Brightness: 500cd/m2

Interface: CMOS (1 Ch, 6-bit) , 31 Pins Connector

Touch Panel: Withtout

Application: Industrial

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	NL6448BC26-26	Panel Brand	NEC
Size (inch )	8.4inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 95PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	200(W)×152(H)×8.7(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	170.88(W)×128.16(H) mm	Response Time	3/15 (Typ.)(Tr/Td)
Display Colors	262K 40% NTSC	Light Source	WLED [4 strings] , 70K hours , W/O Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	500 cd/m² (Typ.)	Power Supply	3.3/5.0V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Environment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -30 ~ 80°C
		Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	CMOS (1 ch, 6-bit) 31 pins Connector	FPC connector	HRS, DF9C-31P-1V, Pitch 1.0mm

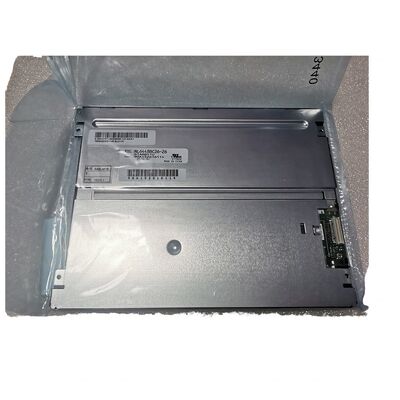

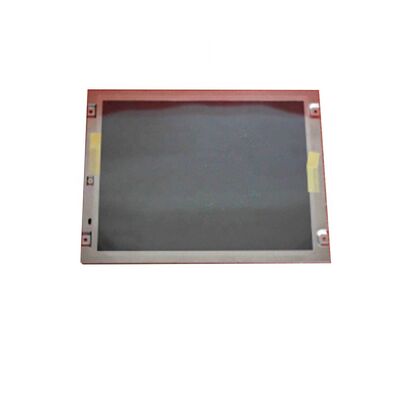

Details Images

500cd/m2 Brightness Industrial 8.4Inch VGA 640x480 Wide Temperature Panel LCD Module with 2.0G Vibration Resistance
