Outdoor Handheld PDA Display Panel 5.5-Inch FHD 1080x1920 TFT-LCD Screen Module with High Brightness and 40 pins Connector

Brand Name:	BOE
Price:	$40/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

5.5inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1080x1920(RGB), FHD 403PPI

Module Outsize(mm):

70.44(H)x128.79(V)x2(D) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Brightness:

900cd/m2

Interface:

MIPI (4 Data Lanes) , 40 Pins Connector

Touch Panel:

Withtout

Application:

Outdoor High Brightness Handheld PDA

MPQ:

24pcs

Warranty:

12 Months

Highlight:

panel tft lcd display

panel industrial tft display

fhd tft lcd display

Product Description

Products Description

Panel Model	ZV055FHM-N42-18P0	Panel Brand	BOE
Size (inch )	5.5inch	Panel Type	LTPS TFT-LCD, LCM
Resolution	1080×1920(RGB), FHD 403PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	70.44(W)×128.79(H) ×2(D) mm	Display Mode	ADS, Normally Black, Transmissive
LCD Active area(mm)	68.04(W)×120.96(H) mm	Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 70% NTSC	Light Source	WLED , Without Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	900 cd/m² (Typ.)	Power Supply	1.8/5.54/5.54V (Typ.)(VCC/VSP/VSN)
Contrast Ratio	1500:1 (Typ.) (TM)	Used for	Outdoor High Brightness Handheld PDA
Frame Ratio	60Hz	Environment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	MIPI (4 data lanes) , 40 pins Connector	FPC connector	HRS, DF40C-40DP-0.4V, Pitch 0.4mm

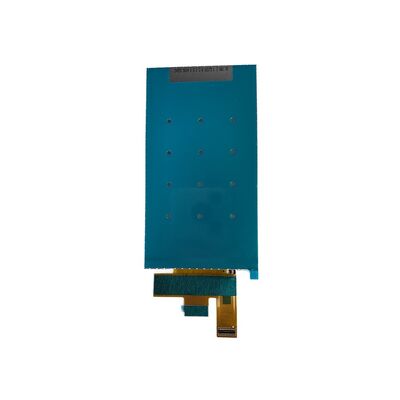

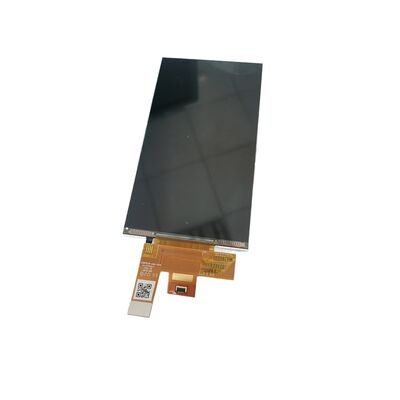

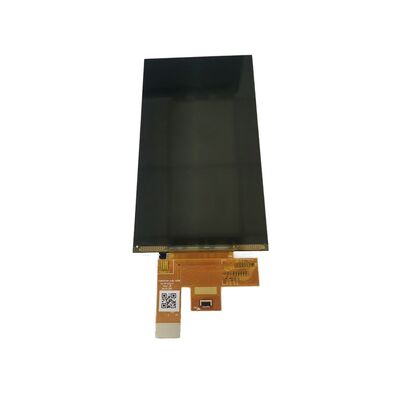

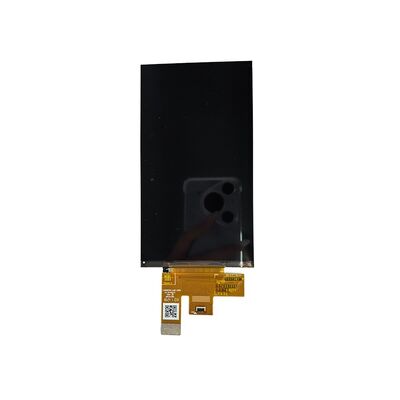

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
