NLT NL192108AC10-01D 9Inch FHD 1920x1080 sRGB Industrial Screen Panel TFT-LCD Module with 2.0G Vibration Resistance LCM

Brand Name:	NEC
Price:	$480/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Type:

TFT

Display Size:

9 Inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)x1080, FHD 245PPI

Module Outsize(mm):

214.6(W)x130(H) X9.6(D) Mm

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Brightness:

400cd/m2

Interface:

LVDS (2 Ch, 6/8-bit) , 50 Pins Connector

Touch Panel:

Withtout

Application:

Industrial

MPQ:

10pcs

Warranty:

12 Months

Highlight:

fhd tft lcd display

fhd industrial tft display

1920x1080 tft lcd display

Product Description

Products Description

Panel Model	NL192108AC10-01D	Panel Brand	NLT
Size (inch )	9inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 245PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	214.6(W)×130(H) ×9.6(D) mm	Display Mode	SFT, Normally Black, Transmissive
LCD Active area(mm)	198.72(W)×111.78(H) mm	Response Time	13/12 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 100% sRGB	Light Source	WLED , 70K hours , With LED Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Environment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -20 ~ 70°C
		Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	LVDS (2 ch, 6/8-bit) , 50 pins Connector	FPC connector	JAE, DF19L-30P-1H, Pitch 1.0mm JAE, DF19L-20P-1H, Pitch 1.0mm

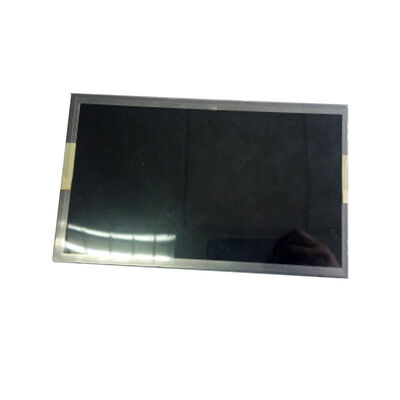

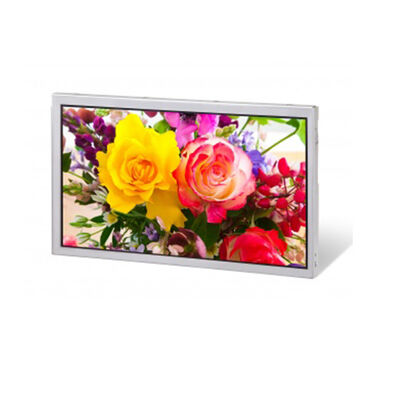

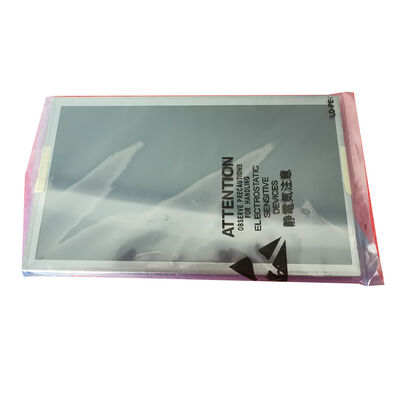

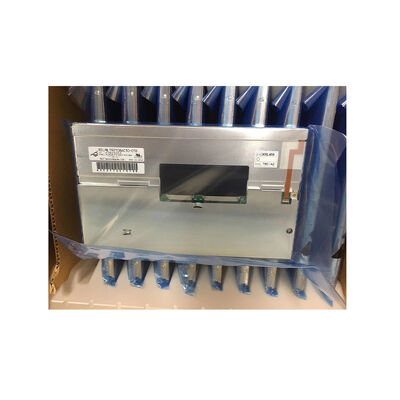

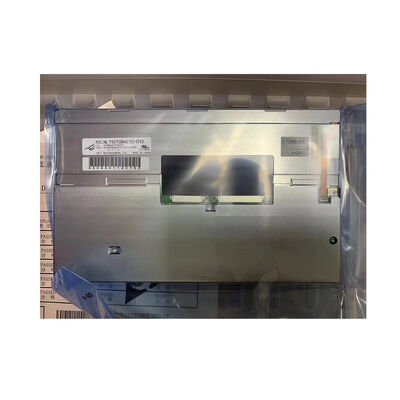

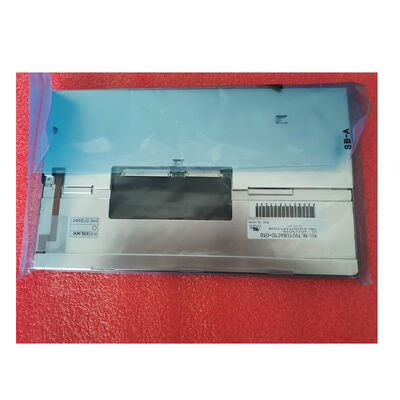

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
