Quality SVGA 800x600 TFT-LCD Module Highly Durable 12.1 Inch Industrial Display Screen Panel with 2.0G Vibration Resistance factory

SVGA 800x600 TFT-LCD Module Highly Durable 12.1 Inch Industrial Display Screen Panel with 2.0G Vibration Resistance

Brand Name

NEC

Country Of Origin

Japan

Unit Price

$214/pieces 1-99 pieces

Product Details

Highlight:

svga tft lcd display

svga industrial tft display

800x600 tft lcd display

Type: TFT

Display Size: 12.1inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 800(RGB)x600, SVGA 82PPI

Module Outsize(Mm): 280(W)x210(H)x11.5(D) Mm

Viewing Angle: 80/80/80/60 (Typ.)(CR≥10)

Brightness: 400cd/m2

Interface: LVDS (1 Ch, 6/8-bit) 20 Pins Connector

Touch Panel: Withtout

Application: Industrial

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	NL8060BC31-41D	Panel Brand	NEC
Size (inch )	12.1inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	280(H)×210(V) ×11.5(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	246(W)×184.5(H) mm	Response Time	6/19 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 41% NTSC	Light Source	CCFL [2 pcs] , W/O Driver
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Environment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -20 ~ 70°C
		Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	FPC connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

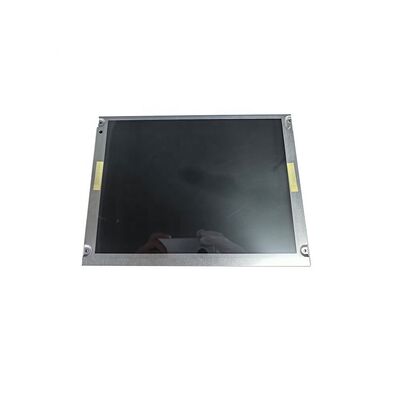

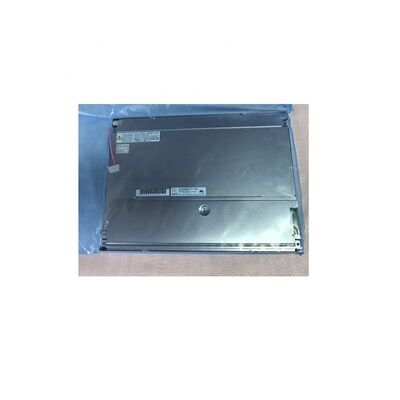

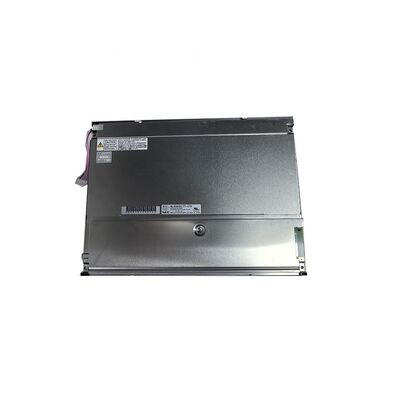

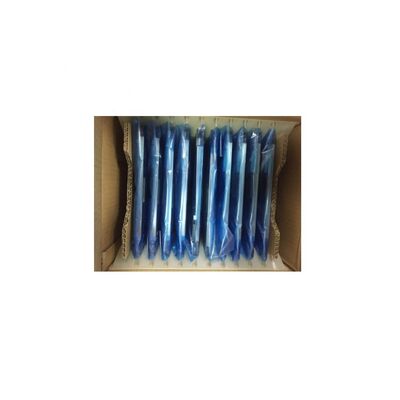

Details Images

SVGA 800x600 TFT-LCD Module Highly Durable 12.1 Inch Industrial Display Screen Panel with 2.0G Vibration Resistance
