Quality 10pcs BOE DV430FHM-NN1 43-Inch TFT-LCD FHD 1920x1080 Digital Signage Advertising Display Panel TV Panel Replacement MPQ factory

10pcs BOE DV430FHM-NN1 43-Inch TFT-LCD FHD 1920x1080 Digital Signage Advertising Display Panel TV Panel Replacement MPQ

Brand Name

BOE

Country Of Origin

Guangdong, China

Unit Price

$185/pieces 1-99 pieces

Product Details

Highlight:

boe tft lcd display

boe industrial tft display

lcd industrial tft display

Type: TFT

Display Size: 43inch

Supplier Type: Original Brand

Backlight Type: WLED , 30K Hours , With LED Driver

Resolution: 1920(RGB)x1080, FHD 51PPI, 1920(RGB)x1080, FHD 51PPI

Brightness: 400nits, 400cd/m2

Operating Temperature: Storage .: -20 ~ 60 °C Operating : 0 ~ 50 °C

Display Type: IPS

Mounting Type: Connector

Screen Size: 961.7x550.1x27.7 (HxVxD)

Communication Interface: LVDS (2 Ch, 8-bit) , Connector 51 Pins

Panel Type: A-Si TFT-LCD, LCM

Module Outsize(Mm): 961.7x550.1x27.7 (HxVxD)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Interface: LVDS (2 Ch, 8-bit) , Connector 51 Pins

Touch Panel: Withtout

Application: Digital Signage TV Replacement Advertising

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	DV430FHM-NN1	Panel Brand	BOE
Size (inch )	43inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 51PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	961.7 × 550.1 × 27.7 (H×V×D)	Display Mode	ADS, Normally Black, Transmissive
LCD Active area(mm)	940.896(W)×529.254(H) mm	Response Time	8 (Typ.)(G to G) ms
Display Colors	16.7M 72% NTSC	Light Source	WLED , 30K hours , With LED Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	12.0V (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)	Used for	Digital Signage, Advertising, TV Screen
Frame Ratio	60Hz	Environment	Storage Temp.: -20 ~ 60 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -0 ~ 50°C
LCM Interface Type	LVDS (2 ch, 8-bit) , 51 pins Connector	FPC connector	Pitch 0.5mm

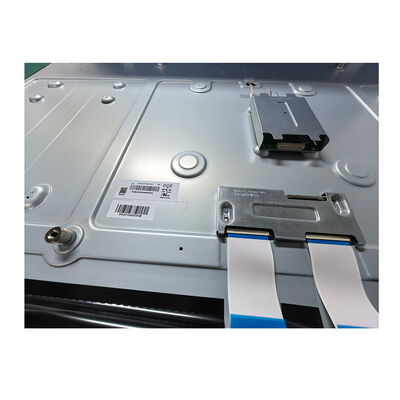

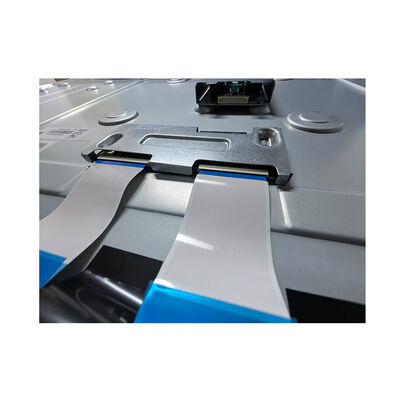

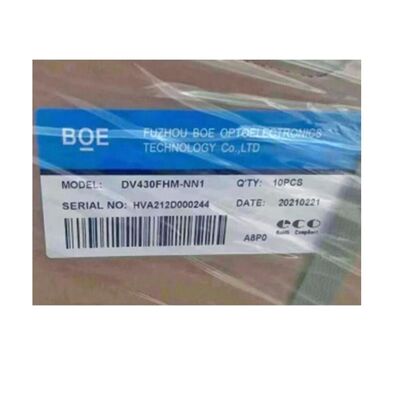

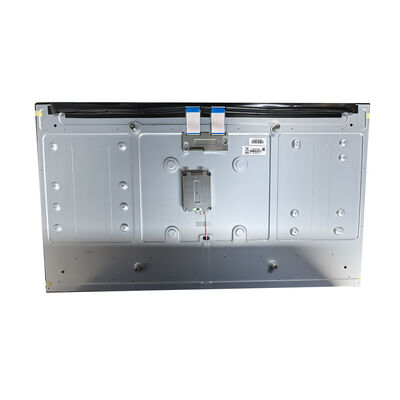

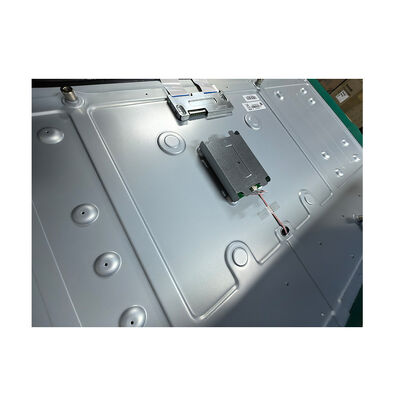

Details Images

10pcs BOE DV430FHM-NN1 43-Inch TFT-LCD FHD 1920x1080 Digital Signage Advertising Display Panel TV Panel Replacement MPQ
