Quality Medical Imaging VVX21F136J00 21.3 Inch UXGA 1600x1200 IPS sRGB TFT-LCD Modules with LVDS Interface 400nits Display Screen factory

Medical Imaging VVX21F136J00 21.3 Inch UXGA 1600x1200 IPS sRGB TFT-LCD Modules with LVDS Interface 400nits Display Screen

Country Of Origin

Japan

Unit Price

$855/pieces 1-99 pieces

Product Details

Highlight:

uxga tft lcd display

uxga industrial tft display

1600x1200 tft lcd display

Type: TFT

Display Size: 21.3inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1600(RGB)x1200, UXGA 94PPI

Module Outsize(Mm): 456(W)x349.5(H)x22.8(D)

Viewing Angle: 89/89/89/89 (Min.)(CR≥10)

Brightness: 400cd/m2

Interface: LVDS

Touch Panel: Withtout

Application: Medical Imaging

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	VVX21F136J00	Panel Brand	Panasonic
Size (inch )	21.3inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 94PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	456(W)×349.5(H)×22.8(D)	Display Mode	IPS, Normally Black, Transmissive
LCD Active area(mm)	304.128(W)×228.096(H) mm	Response Time	11/9 (Typ.)(Tr/Td) ms
Display Colors	16.7M 98% sRGB	Light Source	11S5P WLED , 30K hours , No Driver
Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)	Used for	Medical Imaging
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 60 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -0 ~ 50°C
LCM Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	FPC connector	JAE, FI-X30SSLA-HF, Pitch 1.0mm

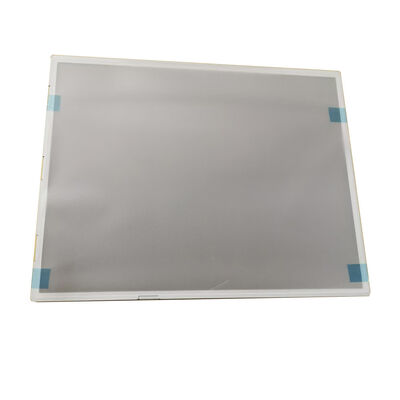

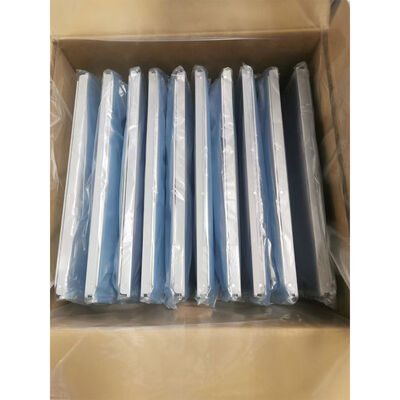

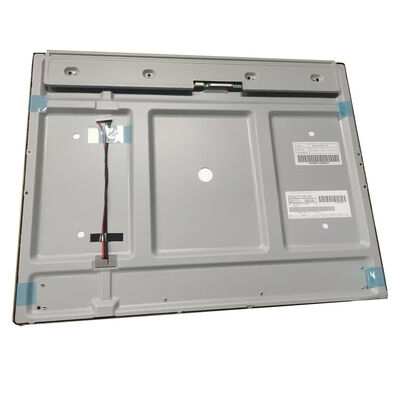

Details Images

Medical Imaging VVX21F136J00 21.3 Inch UXGA 1600x1200 IPS sRGB TFT-LCD Modules with LVDS Interface 400nits Display Screen

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
