Quality 10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD factory

10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD

Brand Name

Sharp

Country Of Origin

China

Unit Price

$165/pieces 1-99 pieces

Product Details

Highlight:

sharp tft lcd display

sharp industrial tft display

1024x768 tft lcd display

Type: TFT

Display Size: 15inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1024(RGB)x768, XGA 85PPI

Module Outsize(Mm): 326.5 X 253.5 X 10.1 (HxVxD)

Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)

Brightness: 400cd/m2

Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel: Withtout

Application: Industrial Equipment

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	LQ150X1LW95	Panel Brand	Sharp
Size (inch )	15inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	326.5 × 253.5 × 10.1 (H×V×D)	Display Mode	ASV, Normally Black, Transmissive
LCD Active area(mm)	304.128(W)×228.096(H) mm	Response Time	35 (Typ.)(Tr+Td)
Display Colors	262K/16.2M 70% NTSC	Light Source	WLED , 70K hours , With LED Driver
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)	Used for	Industrial, Healthcare
Frame Ratio	60Hz	Enviroment	Storage Temp.: -25 ~ 70 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70°C
		Vibration Level	2.0G (19.6 m/s²)
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	FPC connector	HRS, DF14-20P-1.25H(56), Pitch 1.25mm

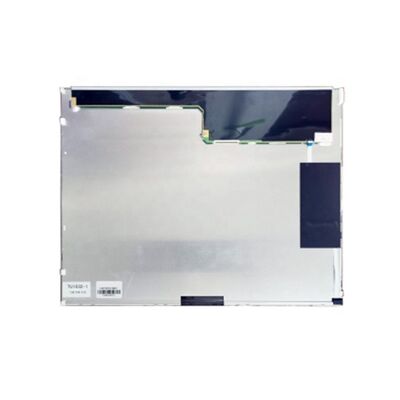

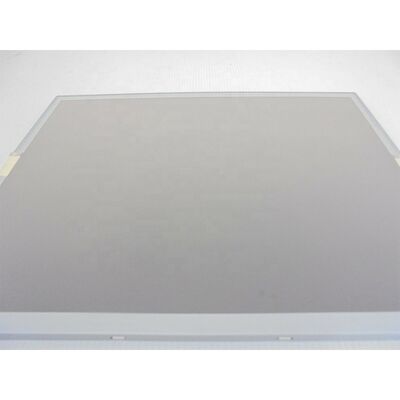

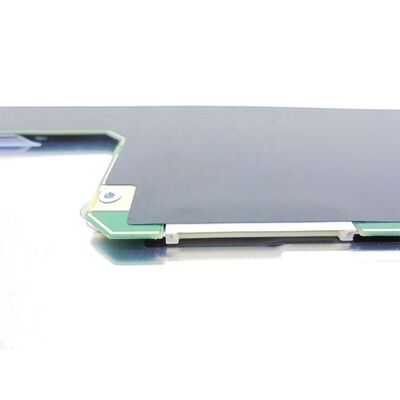

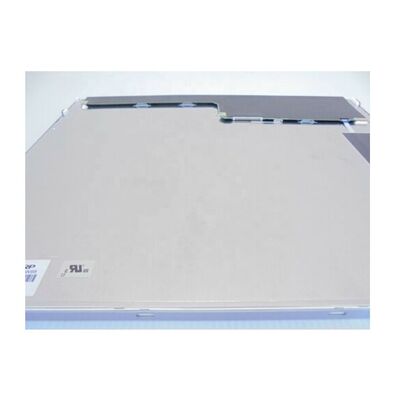

Details Images

10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
