Quality Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display factory

Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display

Brand Name

Innolux

Country Of Origin

China

Unit Price

$25/pieces 1-99 pieces

Product Details

Highlight:

module tft lcd display

module industrial tft display

wvga tft lcd display

Type: TFT

Display Size: 7inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 800(RGB)x480, WVGA 134PPI

Module Outsize(Mm): 144(W)x104.6(H)x12.8(D)

Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)

Brightness: 250cd/m2

Interface: Parallel RGB (1 Ch, 6/8-bit) 50 Pins FPC

Touch Panel: Withtout

Application: Industrial, VOIP Phone, Video Door Phone, Photo Frame

MPQ: 50pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	AT070TN92	Panel Brand	Innolux
Size (inch )	7inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	164.9 × 100 × 6 (H×V×D)	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	154.08(W)×85.92(H) mm	Response Time	10/15 (Typ.)(Tr/Td) ms
Display Colors	262K/16.7M 50% NTSC	Light Source	3S9P WLED , 20K hours , No Driver
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	250 cd/m² (Typ.)	Power Supply	3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Contrast Ratio	800:1 (Typ.) (TM)	Used for	Industrial, VOIP Phone, Digital Photo Frame, Video door Phone, PMP, Portable DVD Player
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC	FPC connector	Pitch 0.5mm

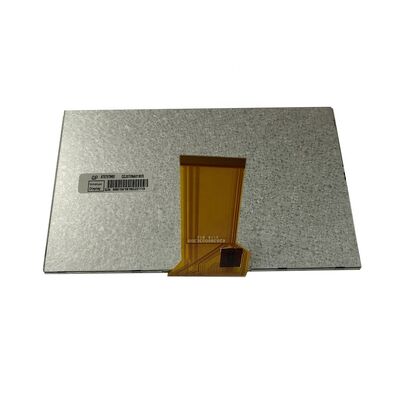

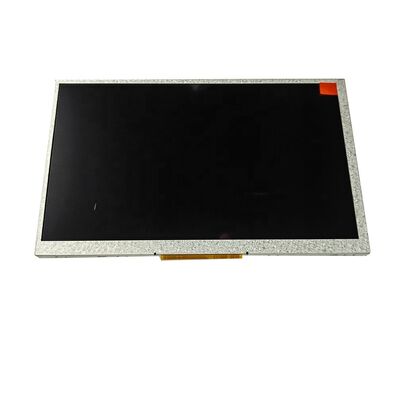

Details Images
