7 Inch 800x480 WVGA RGB Interface a-Si TFT-LCD Display Screen Module for Touch Panel Without Industrial Home Applications

Brand Name

BOE

Country Of Origin

Beijing, China

Unit Price

$16/pieces 1-99 pieces

Product Details

Highlight:

800x480 tft lcd display

800x480 industrial tft display

wvga tft lcd display

Type: TFT

Display Size: 7inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 800(RGB)x480, WVGA 134PPI

Module Outsize(Mm): 164.9(H)x100(V) X7.9(D) Mm

Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)

Brightness: 350cd/m2

Interface: Parallel RGB (1 Ch, 6/8-bit) , 50 Pins FPC

Touch Panel: Withtout

Application: Industrial Equipment, Home Applications

MPQ: 64pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	QT070WVM-NH0	Panel Brand	BOE
Size (inch )	7inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	164.9(W)×100(H) ×7.9(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	153.84(W)×85.632(H) mm	Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 50% NTSC	Light Source	WLED , Without Driver
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	800 cd/m² (Typ.)	Power Supply	3.3/11/16.2/-7V (Typ.)(DVDD/AVDD/VGH/VGL)
Contrast Ratio	600:1 (Typ.) (TM)	Used for	Industrial, Outdoor High Brightness
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC	FPC connector	Pitch 0.5 mm

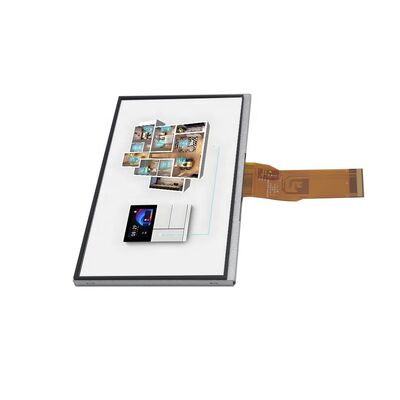

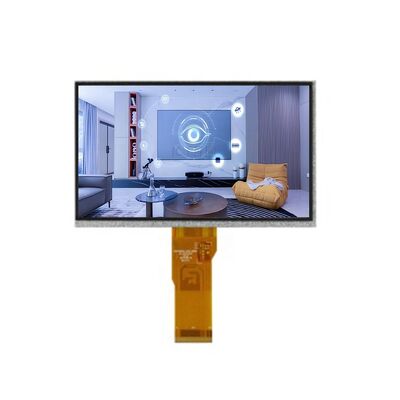

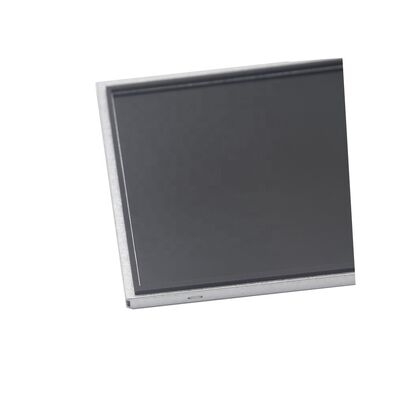

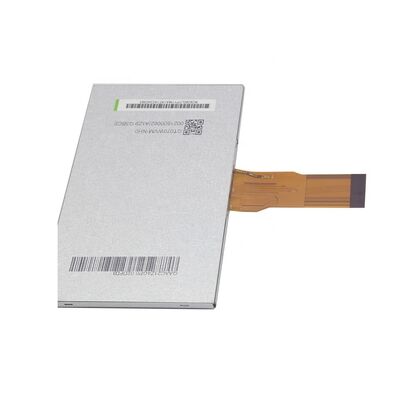

Details Images

7 Inch 800x480 WVGA RGB Interface a-Si TFT-LCD Display Screen Module for Touch Panel Without Industrial Home Applications
