8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules

Brand Name

NEC

Country Of Origin

China

Unit Price

$135/pieces 1-99 pieces

Product Details

Highlight:

lcd industrial tft display

640x480 tft lcd display

640x480 industrial tft display

Type: TFT

Display Size: 8.4inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 640(RGB)x480, VGA 95PPI

Module Outsize(Mm): 200(H)x152(V) X11(D) Mm

Viewing Angle: 80/80/80/60 (Typ.)(CR 10)

Brightness: 450cd/m2

Interface: CMOS (1 Ch, 6-bit) 31 Pins Connector

Touch Panel: Withtout

Application: Industrial Equipment

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	NL6448BC26-09	Panel Brand	NEC
Size (inch )	8.4inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 95PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	200(W)×152(H) ×11(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	170.88(W)×128.16(H) mm	Response Time	6/19 (Typ.)(Tr/Td)
Display Colors	262K 40% NTSC	Light Source	2 pcs CCFL , Without Driver
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3/5.0V (Typ.)(VCC)
Contrast Ratio	600:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~70°C
		Vibration Level:	2.0G (19.6 m/s²)
LCM Interface Type	CMOS (1 ch, 6-bit) , 31 pins Connector	FPC connector	HRS, DF9C-31P-1V, Pitch 1.0mm

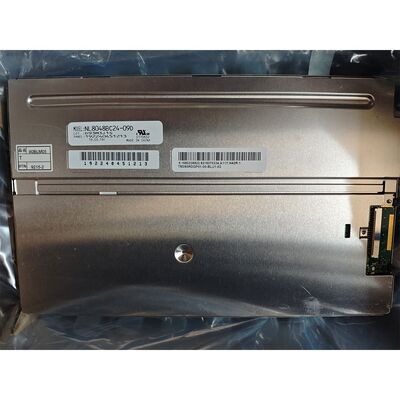

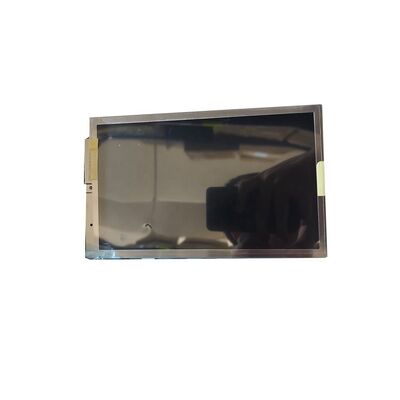

Details Images

8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
