Quality 3840x2160 Resolution 32-Inch UHD TFT-LCD Display Desktop Monitor for Medical Imaging and Industrial Screen sRGB 4-Side factory

3840x2160 Resolution 32-Inch UHD TFT-LCD Display Desktop Monitor for Medical Imaging and Industrial Screen sRGB 4-Side

Brand Name

LG Display

Country Of Origin

China

Unit Price

$135/pieces 1-499 pieces

Product Details

Highlight:

lcd industrial tft display

lcm tft lcd display

rgb tft lcd display

Type: TFT

Display Size: 32inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 3840(RGB)x2160, UHD 139PPI

Module Outsize(Mm): 709.2(W)x405.48(H)x14.2(D) Mm

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Brightness: 350cd/m2

Interface: EDP (4 Lanes) , HBR2 (5.4G/lane) , 30 Pins Connector

Touch Panel: Without

Application: Industrial Equipment Desktop Monitor Medical Imaging

MPQ: 14pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	LM315WR1-SSA1	Panel Brand	LG Display
Size (inch )	32inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PP	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	428(W)×278(H) ×18.5(D) mm	Display Mode	IPS, Normally Black, Transmissive
LCD Active area(mm)	408.24(W)×255.15(H) mm	Response Time	14 (Typ.)(G to G) ms
Display Colors	1.07B 99% sRGB	Light Source	17S4P WLED , 30K hours , No Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	350 cd/m² (Typ.)	Power Supply	10.0V (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)	Used for	Industrial, Desktop Monitor, Medical Imaging
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 60 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -0 ~ 50°C
LCM Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	FPC connector	LS Mtron, GT05Q-30S-H10-MN, Pitch 0.5mm

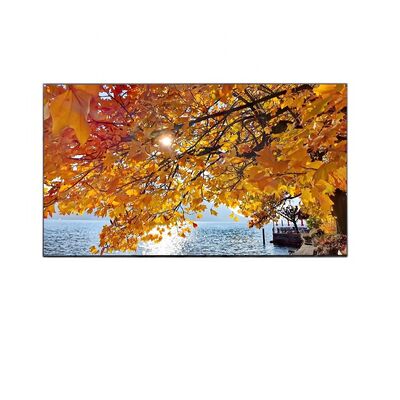

Details Images
