19inch 300cd/m2 LTM190M2-L31 WXGA TFT-LCD Display Screen Panel for Desktop Monitor ATM Commercial System PC Computer

Brand Name:	SAMSUNG
Price:	$99/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

19inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)x900, WXGA+ 89PPI

Module Outsize(mm):

428(H)x278(V)x18.5(D) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Brightness:

300cd/m2

Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Touch Panel:

Without

Application:

Industrial Equipment Desktop Monitor

MPQ:

6pcs

Warranty:

12 Months

Highlight:

19inch tft lcd display

19inch industrial tft display

lcd industrial tft display

Product Description

Products Description

Panel Model	LTM190M2-L31	Panel Brand	SAMSUNG
Size (inch )	19inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PP	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	428(W)×278(H) ×18.5(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	408.24(W)×255.15(H) mm	Response Time	1.3/3.7 (Typ.)(Tr/Td)
Display Colors	16.7M 100% sRGB	Light Source	4 pcs CCFL , 50K hours , Without Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	300 cd/m² (Typ.)	Power Supply	5.0V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Used for	Industrial, Desktop Monitor
Frame Ratio	60Hz	Enviroment	Storage Temp.: -25 ~ 60 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -0 ~ 50°C
LCM Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	FPC connector	UJU, IS100-L30R-C23, Pitch 1.0mm

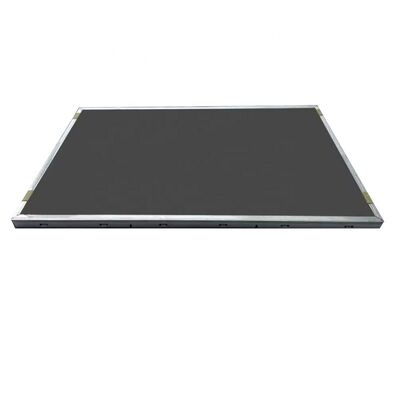

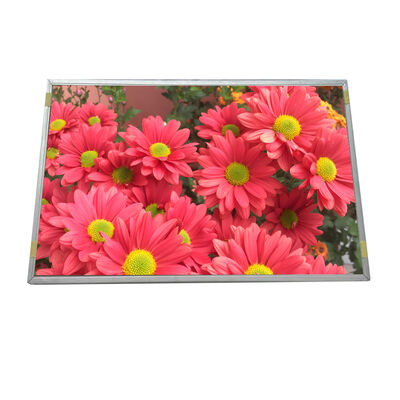

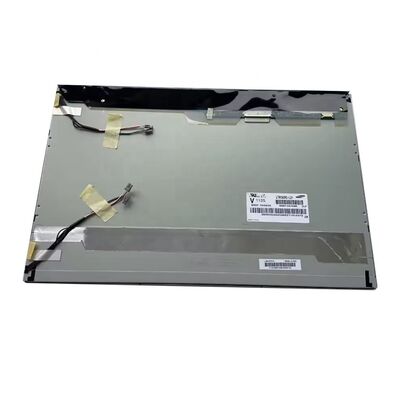

Details Images
