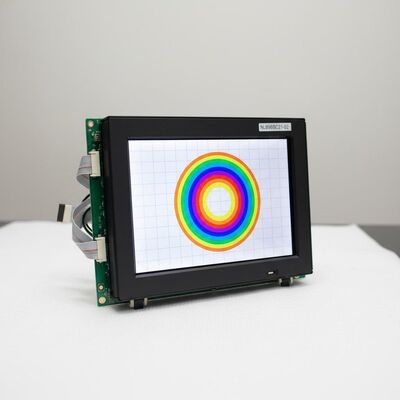

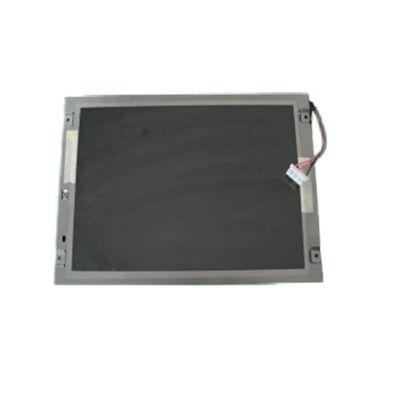

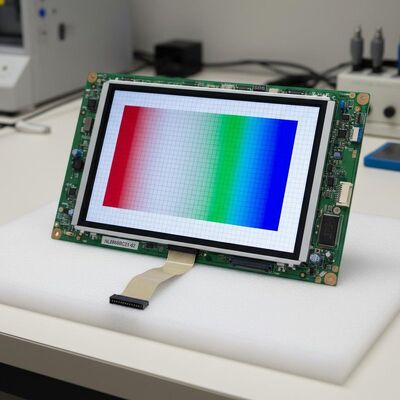

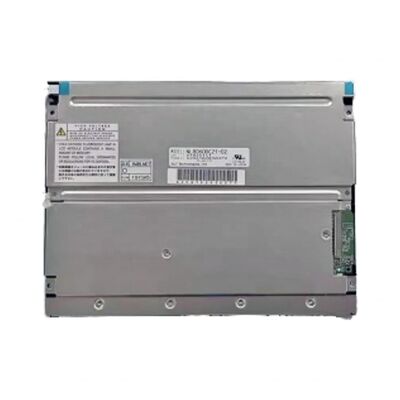

NL8060BC21-02 8.4inch 800x600 SVGA Industrial TFT Display with 400cd/m2 Brightness LVDS Interface TFT-LCD Module

Name: NL8060BC21-02 8.4inch 800x600 SVGA Industrial TFT Display with 400cd/m2 Brightness LVDS Interface TFT-LCD Module
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: NL8060BC21-02
Price: 50.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL8060BC21-02
MOQ:	1
Price:	$325/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Supplier Type:

Original Brand

Display Size:

8.4inch

Resolution:

800(RGB)x600, SVGA 119PPI

Module Outsize(mm):

200(W)x152(H) X11(D) Mm

Viewing Angle:

80/80/80/60 (Typ.)(CR 10)

Brightness:

400cd/m2

Contrast Ratio:

600 : 1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Backlight:

2 Pcs CCFL , No Driver

Touch Panel:

Withtout

Max. Ratings:

Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)

Application:

Industrial Equipment

MPQ:

10pcs

Warranty:

12 Months

Highlight:

8.4inch Industrial TFT Display

800x600 SVGA TFT-LCD Module

LVDS Interface LCM Display

Product Description

NL8060BC21-02 MPQ 10pcs 8.4 Inch SVGA CCFL Industrial LCD Monitor

High-performance 8.4-inch TFT-LCD display module with 800×600 SVGA resolution and LVDS interface, designed for industrial equipment applications. This industrial-grade display delivers reliable visual performance without integrated touch functionality.

Key Features

8.4-inch diagonal TFT-LCD display with 119 PPI pixel density
800×600 SVGA resolution for clear image quality
LVDS interface with 20-pin FPC connector for reliable data transmission
350 cd/m² high brightness for excellent visibility
500:1 contrast ratio with 262K/16.7M color support
Operating temperature range: -20°C to 70°C
Long-life WLED backlight with 50,000-hour lifespan

Technical Specifications

Panel Model	NL8060BC21-02	Panel Brand	NEC
Size	8.4 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI	Pixel Format	RGB Vertical Stripe
Module Outsize	200(W)×152(H)×11(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active Area	170.4(W)×127.8(H) mm	Response Time	6/19 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 40% NTSC	Light Source	2 pcs CCFL, Without Driver
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3/5.0V (Typ.)(VCC)
Contrast Ratio	600:1 (Typ.) (TM)	Used For	Industrial
Frame Ratio	60Hz	Storage Temperature	-20 ~ 80 °C
LCM Interface Type	LVDS (1 ch, 6/8-bit)	Operating Temperature	-10 ~ 70°C
FPC Connector	HRS, DF9C-31P-1V, Pitch 1.0mm	Vibration Level	2.0G (19.6 m/s²)

Applications

This display module is specifically recommended for industrial equipment, healthcare devices, VOIP phones, and various industrial monitoring applications. Mass production began in Q4 2005.

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation. Optional industrial-grade capacitive touch available.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
