Quality 10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules factory

10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules

Brand Name

Tianma

Country Of Origin

China

Unit Price

$42/pieces 1-99 pieces

Product Details

Highlight:

tianma tft lcd display

tianma industrial tft display

svga tft lcd display

Type: TFT

Display Size: 10.4inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 800x600, 96PPI

Module Outsize(Mm): 228.4(H)x175.4(V) X6.5(D) Mm

Viewing Angle: 70/70/60/70 (Typ.)(CR 10)

Brightness: 350cd/m2

Interface: Parallel RGB (1 Ch, 6/8-bit) , 60 Pins FPC

Touch Panel: Withtout

Application: Industrial Equipment, Automotive

MPQ: 22pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	TM104SDHG30-71	Panel Brand	Tianma
Size (inch )	10.4inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	228.4(W)×175.4(H) ×6.5(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	211.2(W)×158.4(H) mm	Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	262K/16.2M 50% NTSC	Light Source	3S12P WLED , 30K hours , Without Driver
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	350 cd/m² (Typ.)	Power Supply	3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Contrast Ratio	500:1 (Typ.) (TM)	Used for	Industrial, Automotive
Frame Ratio	60Hz	Environment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Environment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC	FPC connector	Pitch 0.5mm

Details Images

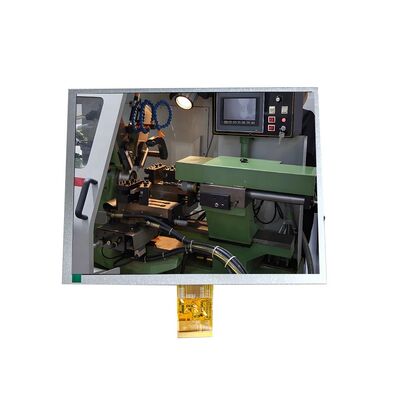

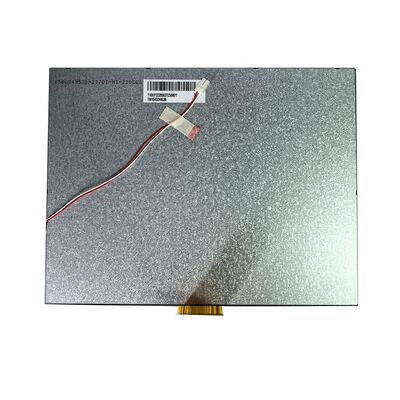

10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
