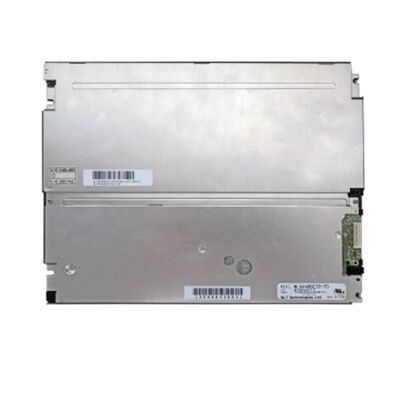

| Brand Name: | NEC |
| Model Number: | NL6448BC33-70 |
| MOQ: | 1 |
| Price: | $165/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Panel Model | NL6448BC33-70 | Panel Brand | NEC |
|---|---|---|---|
| Size | 10.4 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI | Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 243(W)×185.1(H)×11(D) mm | Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2(W)×158.4(H) mm | Response Time | 3/15 (Typ.)(Tr/Td) |
| Display Colors | 262K 40% NTSC | Light Source | WLED [3 strings], 70K hours, W/O Driver |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Touch Screen | Without |
| Brightness | 450 cd/m² (Typ.) | Power Supply | 3.3/5.0V (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) | Application | Industrial |
| Frame Rate | 60Hz | Storage Temperature | -30 ~ 80 °C |
| LCM Interface Type | CMOS (1 ch, 6-bit), 31 pins Connector | Operating Temperature | -30 ~ 80°C |
| FPC Connector | HRS, DF9C-31P-1V, Pitch 1.0mm | Vibration Level | 2.0G (19.6 m/s²) |
