Product Details
Highlight:
119PPI Industrial TFT Display
,SVGA Industrial TFT Display
,NL8060BC21-11C
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
8.4inch
Brand:
NEC
Module Outsize(Mm):
200(H)x152(V) X8.7(D) Mm
Resolution:
800(RGB)x600, SVGA 119PPI
Brightness:
800cd/m2
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Signal Type Interface:
LVDS (1 Ch, 6/8-bit) , Connector 20 Pins
Touch Panel:
Withtout
Operating Temperature:
Operating Temperature: -30 ~ 80 °C
Application:
Industrial Equipment
MPQ:
10pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features

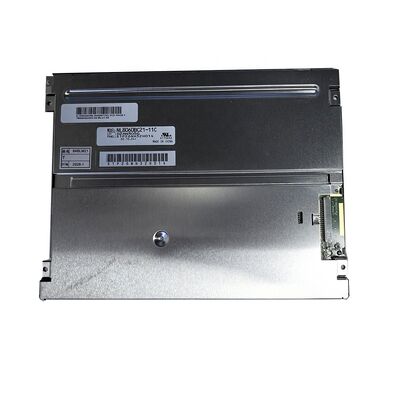

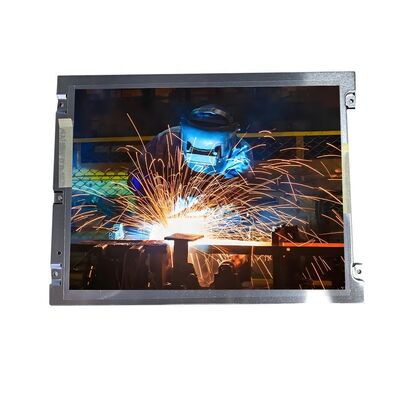

NLT NL8060BC21-11C 8.4-Inch Industrial Display Screen
High-performance 8.4-inch TFT-LCD display module with 800*600 SVGA resolution, engineered for demanding industrial applications requiring reliable operation across wide temperature ranges and vibration resistance.
Note: This product has reached end-of-life (EOL). Limited stock available - please order promptly.
Key Features
- 800*600 SVGA resolution with 119 PPI for sharp display clarity
- 800 cd/m² high brightness for excellent visibility in various lighting conditions
- TN technology with 80/80/80/80 viewing angles
- LVDS interface with 20-pin connector for reliable data transmission
- 800:1 contrast ratio for superior image quality
- WLED backlight with 70,000 hours lifespan
- 16.7M color support with 40% NTSC color gamut
- Wide operating temperature range: -30°C to 80°C
- Vibration resistance: 2.0G (19.6 m/s²)
Technical Specifications
| Panel Model | NL8060BC21-11C |
| Panel Brand | NEC |
| Size | 8.4 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)*600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 200(W)*152(H)*8.7(D) mm |
| Display Mode | TN, Normally White, Transmissive |
| LCD Active Area | 170.4(W)*127.8(H) mm |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 40% NTSC |
| Light Source | WLED [4 strings], 70K hours, W/O Driver |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Touch Screen | Without |
| Brightness | 800 cd/m² (Typ.) |
| Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Frame Ratio | 60Hz |
| Used For | Industrial |
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -30°C to 80°C |
| Vibration Level | 2.0G (19.6 m/s²) |
| LCM Interface Type | LVDS (1 ch, 8-bit), 20 pins Connector |
| FPC Connector | JAE, FI-SE20P-HFE, Pitch 1.25mm |
Applications
- Industrial equipment and machinery
- Automation equipment displays
- CNC machine displays
- Medical equipment
- EV Charger Display
- Industrial Control Display
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
