NEC 8.4 Inch Industrial TFT Display Monitor 900nits Brightness Anti Glare

Name: NEC 8.4 Inch Industrial TFT Display Monitor 900nits Brightness Anti Glare
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: NL6448BC26-27F
Price: 50.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL6448BC26-27F
MOQ:	1
Price:	$290/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

8.4inch

Brand:

NEC

Resolution:

640x480, 95PPI

Module Outsize(mm):

200(H)x152(V) X8.7(D) Mm

Viewing Angle:

80/80/80/80

Brightness:

900cd/m2

Contrast Ratio:

1000:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Environment:

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)

Application:

Industrial Equipment

MPQ:

10pcs

Warranty:

12 Months

Highlight:

Anti Glare Industrial TFT Display

900nits Industrial TFT Display

Anti Glare tft monitor

Product Description

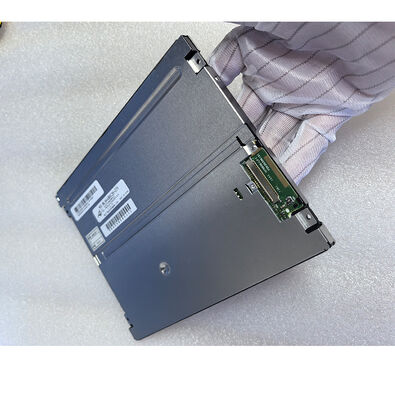

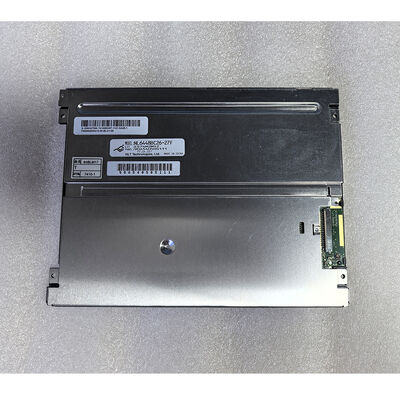

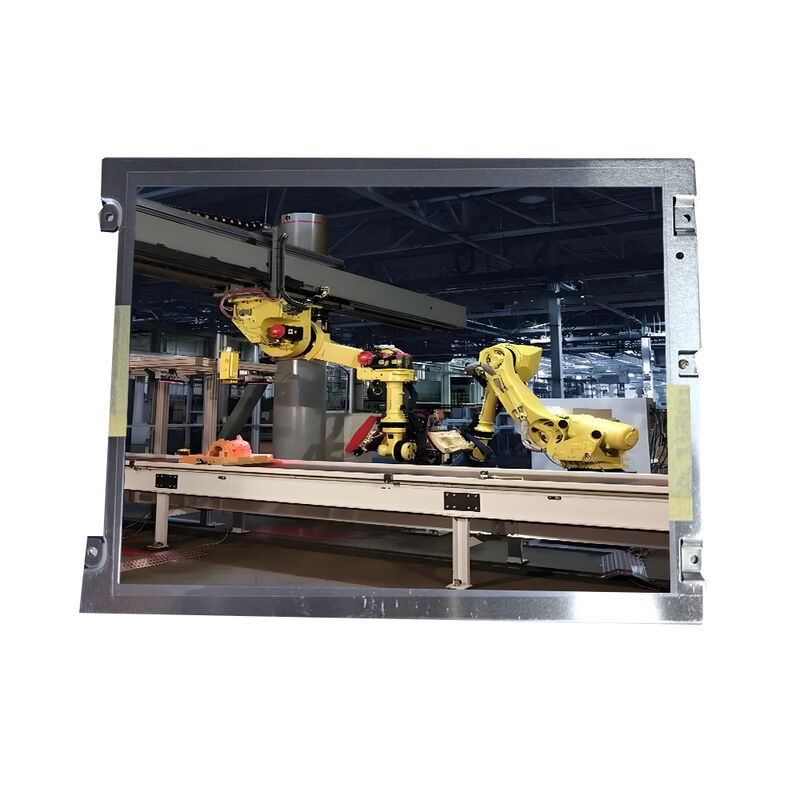

NL6448BC26-27F NEC 8.4-Inch VGA TFT-LCD Display

High-performance 8.4-inch TFT-LCD display module with 640*480 VGA resolution and 900 nits brightness, engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.

Product Status: This product has been discontinued (EOL). Stock is limited, so please place your order promptly.

Key Features

640*480 VGA resolution with 95 PPI for clear display quality
900 cd/m² high brightness for excellent visibility
TN technology with wide viewing angles
LVDS interface with 20-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 70,000 hours lifespan
16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 80°C
Extended storage temperature range: -30°C to 80°C
Vibration resistance: 2.0G (19.6 m/s²)

Technical Specifications

Panel Model	NL6448BC26-27F	Panel Brand	NEC
Size	8.4 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)*480, VGA 95PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	200(W)152(H)8.7(D) mm	Display Mode	TN, Normally White, Transmissive
Active Area	170.88(W)*128.16(H) mm	Response Time	3/15 (Typ.)(Tr/Td)
Display Colors	16.7M 40% NTSC	Light Source	4 strings WLED, 70K hours, Without Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	900 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Used For	Industrial
Frame Ratio	60Hz	Operating Temperature	-30°C to 80°C
LCM Interface	LVDS (1 ch, 8-bit), 20 pins Connector	Storage Temperature	-30°C to 80°C
FPC Connector	JAE, FI-SE20P-HFE, Pitch 1.25mm	Vibration Level	2.0G (19.6 m/s²)

Applications

Industrial equipment and machinery CNC machine displays Medical equipment EV Charger Display Industrial Control Display Outdoor high brightness

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional: Touchscreen integration solutions available upon request.
