Kyocera 5.7 Inch Industrial TFT Display with QVGA Resolution FSTN and Parallel Data Connector

Name: Kyocera 5.7 Inch Industrial TFT Display with QVGA Resolution FSTN and Parallel Data Connector
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: KG057QV1CA-G000
Price: 60.00 USD
Availability: InStock

Brand Name:	Kyocera
Model Number:	KG057QV1CA-G000
MOQ:	1
Price:	$120/pieces >=1 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

5.7inch

Supplier Type:

Original Brand

Resolution:

320(RGB)x240, QVGA 122PPI

Module Outsize(mm):

144 X 104.8 X 13.2 (HxVxD)

Viewing Angle:

45/45/20/40 (Min.)(CR≥2)

Brightness:

220cd/m2

Contrast Ratio:

10:1 (Typ.) (TM)

Light Source:

CCFL [1 Pcs] , 58K Hours , W/O Driver

Interface:

Parallel Data Connector

Touch Panel:

Withtout

Application:

Industrial Equipment

MPQ:

10pcs

Warranty:

12 Months

Packaging Details:

10pcs/Box

Highlight:

5.7 Inch Industrial TFT Display

QVGA Resolution TFT LCD Display Module

Parallel Data Connector Industrial LCD Screen

Product Description

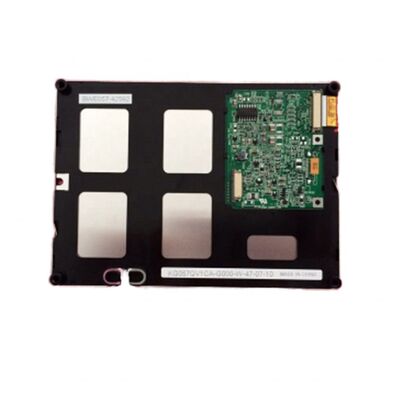

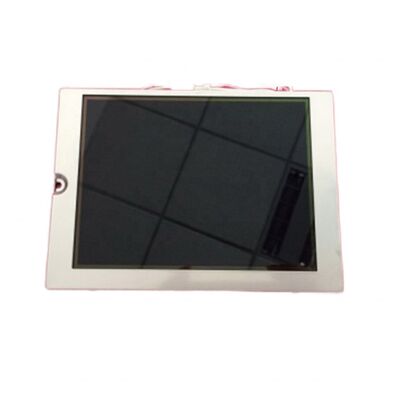

Kyocera KG057QV1CA-G000 5.7 Inch Industrial QVGA FSTN LCD Display

Industrial-grade 5.7-inch QVGA FSTN LCD monochrome display module with 320*240 resolution and parallel data connector interface, designed for demanding industrial applications.

Key Features

Display Type: FSTN-LCD, Monochrome

Resolution: 320*240 QVGA (70 PPI)

Brightness: 220 cd/m² (Typical)

Interface: Parallel Data Connector

Viewing Angle: 45/45/20/40 (CR≥2)

Backlight: 1 CCFL, 58K hours lifespan

Technical Specifications

Panel Model	KG057QV1CA-G000	Panel Brand	Kyocera
Size	5.7 inch	Panel Type	FSTN-LCD, LCM
Resolution	320*240, QVGA 70PPI	Pixel Format	Rectangle
Module Dimensions	144(W)104.8(H)13.2(D) mm	Display Mode	STN, Black/White (Negative), Transmissive
Active Area	115.18(W)*86.38(H) mm	Response Time	500 ms (Typical)
Display Colors	Monochrome	Light Source	1 CCFL, 58K hours
Brightness	220 cd/m² (Typical)	Power Supply	3.3/5.0V (Typical)
Contrast Ratio	10:1 (Typical)	Application	Industrial
Frame Rate	60Hz	Operating Temperature	-20°C to 70°C
Interface Type	Parallel Data Connector	Storage Temperature	-30°C to 80°C

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include:

AR (Anti-Reflective) coating
AF (Anti-Fingerprint) coating
AG (Anti-Glare) coating

Can be equipped with HDMI driver boards for simplified customer debugging and product evaluation.

Applications

Ideal for industrial equipment, control systems, instrumentation, and various industrial monitoring applications requiring reliable monochrome display performance.

Why Choose Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, reliable first-tier services to our clients.
