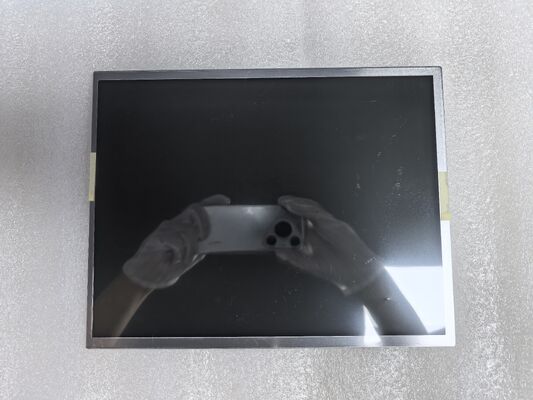

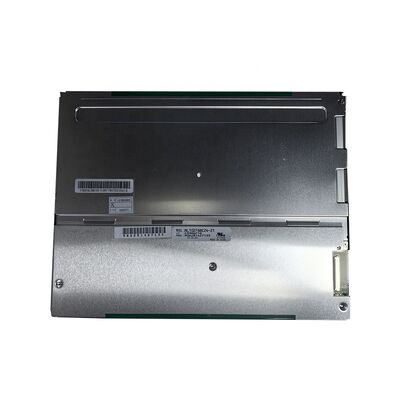

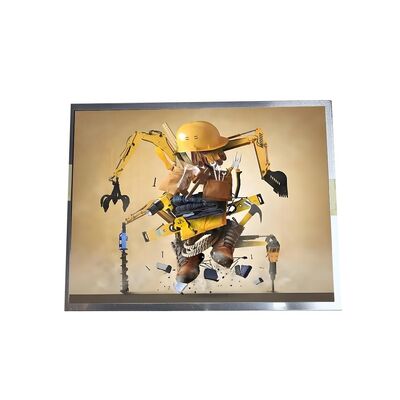

ODM 12.1 Inch Industrial TFT Display IPS LCD 1024x768 XGA NL10276BC24-21 NEC

Name: ODM 12.1 Inch Industrial TFT Display IPS LCD 1024x768 XGA NL10276BC24-21 NEC
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: NL10276BC24-21
Price: 50.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL10276BC24-21
MOQ:	1
Price:	$300/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1inch

Brand:

NEC

Resolution:

1024(RGB)×768, XGA 105PPI

Module Outsize(mm):

260.5 X 203 X 9.2 (HxVxD)

Active Area:

245.76(W)×184.32(H) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Brightness:

450cd/m2

Contrast Ratio:

900:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Touch Panel:

Withtout

Application:

Industrial Equipment

Environment:

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)

MPQ:

10pcs

Warranty:

12 Months

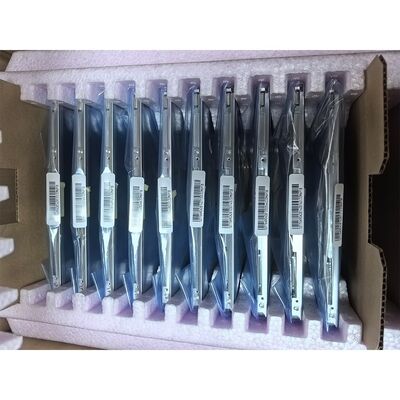

Packaging Details:

10pcs/Box

Highlight:

ODM Industrial TFT Display

NL10276BC24 Industrial TFT Display

ODM ips tft lcd display

Product Description

NL10276BC24-21 12.1-Inch XGA LCD Display Panel

High-performance 12.1-inch TFT-LCD display module with 1024×768 XGA resolution, engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.

Note: This product has reached end-of-life (EOL). Limited stock available - please order promptly.

Key Features

1024×768 XGA resolution with 105 PPI for clear display
450 cd/m² high brightness for excellent visibility
TN technology with 80/80/80/80 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
900:1 contrast ratio for superior image quality
WLED backlight with 70,000 hours lifespan
262K/16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Panel Model	NL10276BC24-21	Panel Brand	NEC
Size	12.1 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024×768, XGA 105PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	260.5×203×9.2 mm	Display Mode	TN, Normally White, Transmissive
Active Area	245.76×184.32 mm	Response Time	3/15 ms (Typ.)(Tr/Td)
Display Colors	262K/16.7M 40% NTSC	Light Source	4 strings WLED, 70K hours
Viewing Angle	80/80/80/80 (CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	900:1 (Typ.)	Application	Industrial
Frame Rate	60Hz	Interface Type	LVDS (1 ch, 6/8-bit), 20 pins
Storage Temperature	-30°C to 80°C	Operating Temperature	-30°C to 80°C
Vibration Level	2.0G (19.6 m/s²)	FPC Connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
Medical equipment
EV Charger Display
Industrial Control Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
