| Brand Name: | Tianma |
| Model Number: | TM070RBH10-41 |
| MOQ: | 1 |
| Price: | $30/pieces 1-299 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

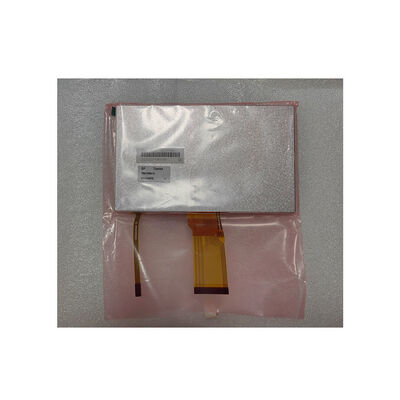

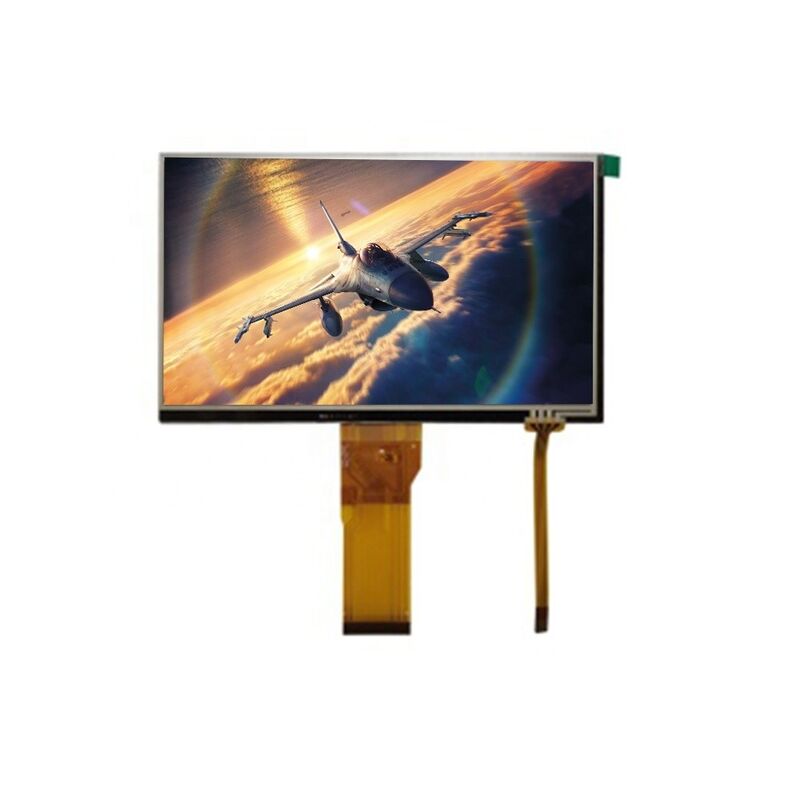

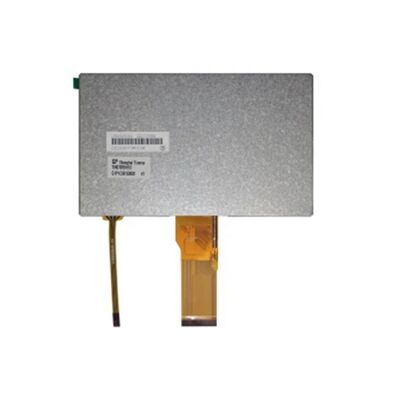

High-performance 7-inch TFT-LCD display module with 800×480 WVGA resolution, designed for demanding industrial applications requiring reliable visual performance.
Mass production began in Q2 2015. This product has been discontinued (EOL). Stock is limited, so please place your order promptly.
| Panel Model | TM070RBH10-41 | Panel Brand | Tianma |
|---|---|---|---|
| Size | 7 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI | Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 164.9(W)×100(H)×7.1(D) mm | Display Mode | TN, Normally White, Transmissive |
| Active Area | 154.08(W)×85.92(H) mm | Response Time | 25ms (Typ.) |
| Display Colors | 262K/16.7M 49% NTSC | Light Source | 3S8P WLED, 20K hours |
| Viewing Angle | 80/80/60/80 (CR≥10) | Touch Screen | 4-wire Resistive Touch |
| Brightness | 350 cd/m² (Typ.) | Power Supply | 3.3/10.4/16.0/-7.0V |
| Contrast Ratio | 1000:1 (Typ.) | Application | Industrial, Medical Imaging |
| Frame Rate | 60Hz | Operating Temperature | -20°C to 70°C |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) | Storage Temperature | -30°C to 80°C |
| FPC Connector | 50 pins, Pitch 0.5mm |
This display can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct integration into your products.
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
