15 Inch 1024x768 XGA IPS TFT LCD Display Module LVDS Interface NL10276AC30-52C NEC
15 Inch 1024x768 XGA IPS TFT LCD Display Module LVDS Interface NL10276AC30-52C NEC
Brand Name
NEC
Product Model
NL10276AC30-52C
Country Of Origin
China
MOQ
1
Unit Price
$390/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Product Details
Highlight:
1024x768 tft lcd display
,LVDS tft lcd display
,15 Inch tft and ips display
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
15 Inch
Supplier Type:
Original Brand
Resolution:
1024(RGB)×768, XGA 85PPI
Module Outsize(Mm):
326.5(H)x253.5(V) X13.5(D) Mm
Viewing Angle:
80/80/80/80 (Typ.)(CR 10)
Brightness:
1600cd/m2
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Interface:
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Touch Panel:
Withtout
Application:
Industrial , Outdoor High Brightness
MPQ:
10pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features

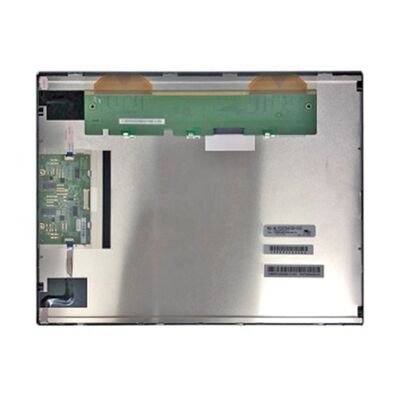

NL10276AC30-52C NEC 15 Inch XGA IPS TFT-LCD Module
High-performance 15-inch TFT-LCD display module with 1024×768 XGA resolution and 1600 nits high brightness, engineered for demanding industrial and outdoor applications requiring reliable operation across wide temperature ranges.
Product Status: This product has been discontinued (EOL). Stock is limited, so please place your order promptly.
Key Features
- 1024×768 XGA resolution with 85 PPI for clear display quality
- 1600 cd/m² ultra-high brightness for excellent visibility in bright environments
- IPS technology with wide viewing angles for consistent image quality
- LVDS interface with 20-pin connector for reliable data transmission
- 1000:1 contrast ratio for superior image quality
- WLED backlight with 50,000 hours lifespan
- 262K/16.2M color support with 60% NTSC color gamut
- Wide operating temperature range: -30°C to 70°C
- Extended storage temperature range: -30°C to 80°C
Technical Specifications
| Panel Model | NL10276AC30-52C |
| Panel Brand | NEC |
| Size | 15.0 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 326.5(H)×253.5(V)×13.5(D) mm |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128(W)×228.096(H) mm |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 60% NTSC |
| Light Source | WLED, 50K hours, With LED Driver |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Touch Screen | Without |
| Brightness | 1600 cd/m² (Typ.) |
| Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Application | Industrial, Outdoor high brightness |
| Frame Ratio | 60Hz |
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -30°C to 70°C |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| FPC Connector | P-two, 185083-20121, Pitch 1.25mm |
Applications
- Industrial equipment and machinery
- CNC machine displays
- Medical equipment
- EV Charger Display
- Industrial Control Display
- Outdoor high brightness
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
Capacitive Touch Optional
Touchscreen integration solutions available upon request.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
